Given a set of 𝑛 samples 𝐷={𝑥₁, 𝑥₂, …, 𝑥_𝑛} i.i.d drawn from a random variable 𝑋

• 𝐏ˆ_ℎ(𝑋=𝑥) = 1/[ℎ·𝑛]・𝛴_{1≤𝑖≤𝑛}𝛴_{𝑏𝑖𝑛∊𝐵𝐼𝑁𝑆}[𝐼(𝑥_𝑖∊𝑏𝑖𝑛)·𝐼(𝑥∊𝑏𝑖𝑛)]
• 𝐏ˆ_ℎ(𝑋=𝑥) = 1/[ℎ·𝑛]・𝑐𝑜𝑢𝑛𝑡(𝐷=𝑥)

where:

• ℎ ≥ 0 - bin-width
• 𝑛 - total number of observed samples
• 𝐵𝐼𝑁𝑆 - set of all bins
• 𝐼() - indicator function, evaluates to 1 when true, 0 when false
• 𝑐𝑜𝑢𝑛𝑡(𝐷=𝑥) - total number of observed samples with 𝑥

• 𝐏ˆ_ℎ(𝑋=𝑥) = 1/[ℎ·𝑛]・𝛴_{1≤𝑖≤𝑛}𝑘_ℎ(𝑥_𝑖,𝑥)

where:

• ℎ > 0 - band-width
• 𝑘(𝑥_𝑖,𝑥) - a univariate kernel function
• ∫𝛴_{1≤𝑖≤𝑛}𝑘_ℎ(𝑥_𝑖,𝑥)𝑑𝑥 = 1

Given a set of 𝑛 samples 𝐷={(𝑥₁,𝑧₁), (𝑥₂,𝑧₂), …, (𝑥_𝑛,𝑧_𝑛)} i.i.d drawn from the joint distribution of 𝑋 & 𝑍

• 𝐏ˆ_{ℎ𝑥·ℎ𝑧}(𝑋=𝑥,𝑍=𝑧) = 1/[ℎ_𝑥·ℎ_𝑧·𝑛]・𝛴_{1≤𝑖≤𝑛}𝛴_{𝑏𝑖𝑛∊𝐵𝐼𝑁𝑆}[𝐼((𝑥_𝑖,𝑧_𝑖)∊𝑏𝑖𝑛)·𝐼((𝑥,𝑧)∊𝑏𝑖𝑛)]

where:

• ℎ_𝑥 ≥ 0 - bin-width on 𝑥 axis
• ℎ_𝑧 ≥ 0 - bin-width on 𝑧 axis

• 𝐏ˆ_ℎ(𝑋=𝑥,𝑍=𝑧) = 1/[ℎ²·𝑛]・𝛴_{1≤𝑖≤𝑛}𝑘_ℎ((𝑥_𝑖,𝑧_𝑖),(𝑥,𝑧))

where:

• 𝑘_ℎ((𝑥_𝑖,𝑧_𝑖),(𝑥,𝑧)) - a bivariate kernel function

• 𝐏ˆ(𝑋=𝑥|𝑌=𝑦) = 1/[ℎ·𝑐𝑜𝑢𝑛𝑡(𝑌=𝑦)]・𝑐𝑜𝑢𝑛𝑡(𝑋=𝑥,𝑌=𝑦)

where:

• ℎ > 0 - a parameter called bandwidth
• 𝑐𝑜𝑢𝑛𝑡(𝑌=𝑦) - total number of observed samples with 𝑦
• 𝑐𝑜𝑢𝑛𝑡(𝑋=𝑥,𝑌=𝑦) - total number of observed samples with 𝑥 and 𝑦

• 𝐏ˆ(𝑋=𝑥|𝑌=𝑦) = 1/[ℎ·𝑐𝑜𝑢𝑛𝑡(𝑌=𝑦)]・𝛴_{(𝑥𝑖,𝑦𝑖)∊𝑎𝑙𝑙-𝑠𝑎𝑚𝑝𝑙𝑒𝑠}𝑘[(𝑥_𝑖,𝑦_𝑖),(𝑥,𝑦)]

where:

• 𝑘[(𝑥_𝑖,𝑦_𝑖),(𝑥,𝑦)] - the kernel function

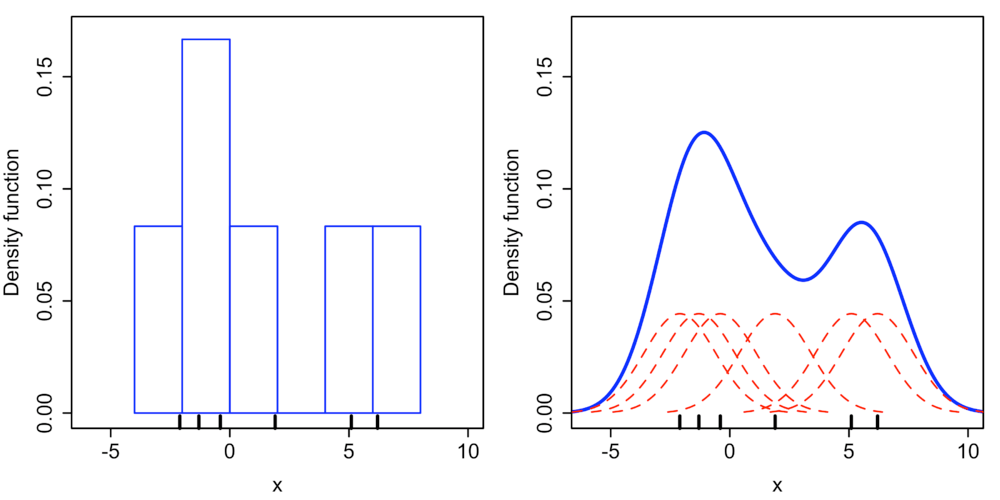

the red-dotted-line represents a gaussian-kernel-function for each observation

• 𝐏ˆ(𝑋=𝑥) = 1/[ℎ·𝑛]・𝑐𝑜𝑢𝑛𝑡(𝑋=𝑥)

where:

• 𝑛 = 6
• ℎ = 2 # here we chose 2 but we could choose any number greater than 0

evaluation:

• 𝐏ˆ(𝑋=𝑥) = 1/12・𝑐𝑜𝑢𝑛𝑡(𝑋=𝑥)

• Click here to expand...

  • 𝐏ˆ(𝑋=-4) = 1/12・1 = 1/12
    • 𝐏ˆ(𝑋=-3.5) = 1/12・1 = 1/12
  • 𝐏ˆ(𝑋=-3) = 1/12・1 = 1/12
    • 𝐏ˆ(𝑋=-2.5) = 1/12・1 = 1/12
  • 𝐏ˆ(𝑋=-2) = 1/12・2 = 1/6
    • 𝐏ˆ(𝑋=-1.5) = 1/12・2 = 1/6
  • 𝐏ˆ(𝑋=-1) = 1/12・2 = 1/6
    • 𝐏ˆ(𝑋=-1.5) = 1/12・2 = 1/6
  • 𝐏ˆ(𝑋=0) = 1/12・1 = 1/12
    • 𝐏ˆ(𝑋=0.5) = 1/12・1 = 1/12
  • 𝐏ˆ(𝑋=1) = 1/12・1 = 1/12
    • 𝐏ˆ(𝑋=1.5) = 1/12・1 = 1/12
  • 𝐏ˆ(𝑋=2) = 1/12・0 = 0
    • 𝐏ˆ(𝑋=2.5) = 1/12・0 = 0
  • 𝐏ˆ(𝑋=3) = 1/12・0 = 0
    • 𝐏ˆ(𝑋=3.5) = 1/12・0 = 0
  • 𝐏ˆ(𝑋=4) = 1/12・1 = 1/12
    • 𝐏ˆ(𝑋=4.5) = 1/12・1 = 1/12
  • 𝐏ˆ(𝑋=5) = 1/12・1 = 1/12
    • 𝐏ˆ(𝑋=5.5) = 1/12・1 = 1/12
  • 𝐏ˆ(𝑋=6) = 1/12・1 = 1/12
    • 𝐏ˆ(𝑋=6.5) = 1/12・1 = 1/12
  • 𝐏ˆ(𝑋=7) = 1/12・1 = 1/12
    • 𝐏ˆ(𝑋=7.5) = 1/12・1 = 1/12

• 𝐏ˆ(𝑋=𝑥) = 1/[ℎ·𝑛]・𝛴_{𝑥𝑖∊𝑎𝑙𝑙-𝑠𝑎𝑚𝑝𝑙𝑒𝑠}𝑘(𝑥_𝑖,𝑥)

where:

• 𝑛 = 6
• ℎ = 0.5 # here we chose 0.5 but we could choose any number greater than 0
• 𝑘(𝑥_𝑖,𝑥) = 𝑒𝑥𝑝(-𝛾·||𝑥_𝑖-𝑥||²) # in this case we use a gaussian kernel, but we could choose any other kernel function

evaluation:

• 𝐏ˆ(𝑋=𝑥) = 1/3・𝛴_{𝑥𝑖∊𝑎𝑙𝑙-𝑠𝑎𝑚𝑝𝑙𝑒𝑠}𝑒𝑥𝑝(-𝛾·||𝑥_𝑖-𝑥||²)

TODO
