Q-learning
- is a model-free reinforcement learning algorithm. The goal of Q-learning is to learn a policy, which tells an agent what action to take under what circumstances. It does not require a model (hence the connotation “model-free”) of the environment, and it can handle problems with stochastic transitions and rewards, without requiring adaptations.
- for any Finite Markov Decision Process (FMDP), Q-learning finds a policy that is optimal in the sense that it maximizes the expected value of the total reward over any and all successive steps, starting from the current state. Q-learning can identify an optimal action-selection policy for any given FMDP, given infinite exploration time and a partly-random policy. “Q” names the function that returns the reward used to provide the reinforcement and can be said to stand for the “quality” of an action taken in a given state

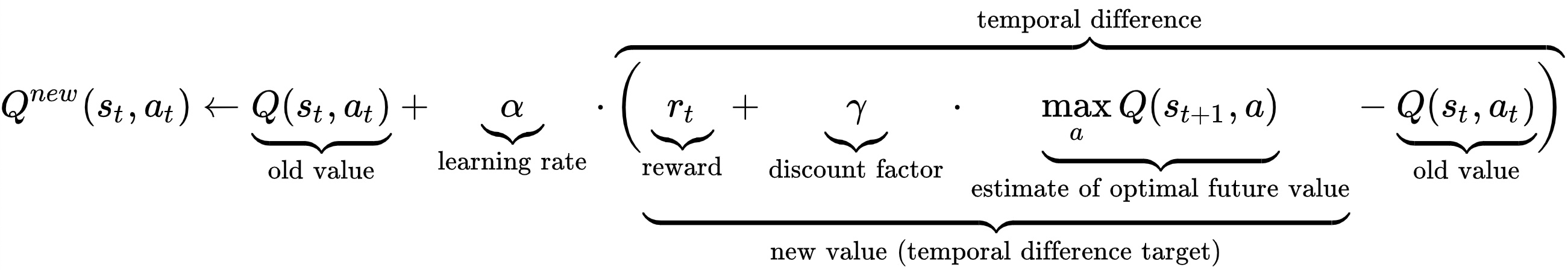

Formula
---cognitive-computing---machine-intelligence/ai---subfields/machine-learning-(ml)---pattern-recognition/ml---models/reinforcement-learning-(rl)/q-learning/index.png)
where:
- 𝛼 - learning rate or step size
- determines to what extent newly acquired information overrides old information
- 𝛼 = 0 makes the agent learn nothing (exclusively exploiting prior knowledge)
- 𝛼 = 1 makes the agent consider only the most recent information (ignoring prior knowledge to explore possibilities)
- In deterministic environments, a learning rate of 𝛼𝑡=1 is optimal
- In stochastic environments, the algorithm converges under some technical conditions on the learning rate that require it to decrease to zero. In practice, often a constant learning rate is used, such as 𝛼𝑡=0.1 for all 𝑡
- 𝛾 - discount factor
- determines the importance of future rewards
- 𝛾 = 0 will make the agent “myopic” (or short-sighted) by only considering current rewards (i.e. 𝑟𝑡 in the update rule above)
- 𝛾 approaching 1 will make it strive for a long-term high reward
- 𝑄0 - initial Q values
- high initial values, also known as “optimistic initial conditions”, can encourage exploration: no matter what action is selected, the update rule will cause it to have lower values than the other alternative, thus increasing their choice probability
Q-Learning - Method Types
|
Value Learning |
|
|---|---|
|
Policy Learning |
|
Q-Learning - Methods
Implementation
based on: https://towardsdatascience.com/q-learning-54b841f3f9e4
# https://towardsdatascience.com/q-learning-54b841f3f9e4
import pandas as pd
import random
class Game:
rewards = None
positionCol = None
positionRow = None
def __init__(self, start_col=1, start_row=1):
self.distance = pd.DataFrame(
{1: [8, 7, 6, 5, 4], 2: [7, 6, 5, 4, 3], 3: [6, 5, 4, 3, 2], 4: [5, 4, 3, 2, 1], 5: [4, 3, 2, 1, 0]},
index={1, 2, 3, 4, 5})
self.rewards = pd.DataFrame(
{1: [0, 1, 2, 3, 4], 2: [1, 2, 3, 4, 5], 3: [2, 3, 4, 5, 6], 4: [3, 4, 5, 6, 7], 5: [4, 5, 6, 7, 8]},
index={1, 2, 3, 4, 5})
self.positionCol = start_col
self.positionRow = start_row
def move(self, direction):
reward = 0
end = False
distance_before = self.distance[self.positionCol][self.positionRow]
if direction == 'Up':
self.positionRow -= 1
elif direction == 'Down':
self.positionRow += 1
elif direction == 'Left':
self.positionCol -= 1
else:
self.positionCol += 1
# check if we lost
if self.positionRow < 1 or self.positionRow > 5 or self.positionCol < 1 or self.positionCol > 5:
end = True
reward = -1000
# check if we have reached the end
elif self.positionCol == 5 and self.positionRow == 5:
end = True
reward = self.rewards[self.positionCol][self.positionRow]
else:
end = False
if distance_before < self.distance[self.positionCol][self.positionRow]:
reward = -1000
else:
reward = self.rewards[self.positionCol][self.positionRow]
# return reward and end of game indicator
return reward, end
# states are in columns and actions are in rows
learning_rate = 1
discount = 1
random_explore = 0.3
q_table = pd.DataFrame(100, index=['Up', 'Down', 'Left', 'Right'],
columns=[11, 12, 13, 14, 15, 21, 22, 23, 24, 25, 31, 32, 33, 34, 35, 41, 42, 43, 44, 45, 51, 52,
53, 54, 55])
# print(q_table) would output
# 11 12 13 14 15 21 22 ... 44 45 51 52 53 54 55
# Up 100 100 100 100 100 100 100 ... 100 100 100 100 100 100 100
# Down 100 100 100 100 100 100 100 ... 100 100 100 100 100 100 100
# Left 100 100 100 100 100 100 100 ... 100 100 100 100 100 100 100
# Right 100 100 100 100 100 100 100 ... 100 100 100 100 100 100 100
for i in range(1000):
game = Game()
end_of_game = False
while not end_of_game:
# get current state state names are integers for ease of coding, it will be a two digit number with
# 1st digit = Col number
# 2nd digit = Row number
current_state = (game.positionCol * 10) + game.positionRow
# select the action with maximum reward
max_reward_action = q_table[current_state].idxmax()
# replace with random action to promote exploration and not get stuck in a loop
if random.random() < random_explore:
max_reward_action = q_table.index[random.randint(0, 3)]
# play the game with that action
reward, end_of_game = game.move(max_reward_action)
# if (current_state==12): print("CS:" + str(current_state) + ", Action: " + max_reward_action + ", Reward: "
# + str(reward)) if end of game, then if the game is over, then no need to update the q value for the action
# taken, but is set to the reward value observed
if end_of_game:
q_table.loc[max_reward_action, current_state] = reward
else:
optimal_future_value = q_table[(game.positionCol * 10) + game.positionRow].max()
discounted_optimal_future_value = discount * optimal_future_value
learned_value = reward + discounted_optimal_future_value
q_table.loc[max_reward_action, current_state] = (1 - learning_rate) * q_table[current_state][
max_reward_action] + learning_rate * learned_value
print(q_table)
