Monte Carlo Methods

learn from sampled sequences of (states, actions, rewards)

Monte Carlo Prediction

• first-visit MC estimates v_\pi(s) as the average of the returns following first visits to s
• every-visit MC estimates v_\pi(s) as the average of the returns following all visits to s

First-visit MC prediction - for estimating V ~ v_pi:

Input: a policy ⇡ to be evaluated
Initialize:
- V(s) 2R, arbitrarily, for all s 2S
- Returns(s) an empty list, for all s 2S

Loop forever (for each episode):
    Generate an episode following ⇡: S0, A0, R1, S1, A1, R2, ..., ST1, AT1, RT
    G = 0
    Loop for each step of episode, t = T-1, T-2, ..., 0:
        G = G + R_{t+1}
        Unless S_t appears in S0, S1, . . . , St-1:
            Append G to Returns(St)
            V(S_t) = average(Returns(S_t))

Monte Carlo Estimation of Action Values

w/o model state values alone are not sufficient for estimation, we need action-values.

Monte Carlo Control

to approximate optimal policies

for each s deterministically choose an action with maximal action-value:

• $\pi (s)=argma{x}_{a}q(s,a)$

policy improvement:

• $q_{{\pi }_k}(s,{\pi }_{k+1}(s))=q_{{\pi }_k}(s,argma{x}_a{q}_{{\pi }_k}(s,a))$
• $q_{{\pi }_k}(s,{\pi }_{k+1}(s))=ma{x}_a{q}_{{\pi }_k}(s,a)$
• $q_{{\pi }_k}(s,{\pi }_{k+1}(s))>=q_{{\pi }_k}(s,{\pi }_k(a))$
• $q_{{\pi }_k}(s,{\pi }_{k+1}(s))>=v_{{\pi }_k}(s)$

MC (Exploring Starts) for estimating \pi ~ \pi*

Initialize:
    \pi(s) ∊ A(s) (arbitrarily), for all s∊S
    Q(s, a) ∊ ℝ (arbitrarily), for all s∊S, a∊A(s)
    Returns(s, a) empty list, for all s∊S, a∊A(s)

Loop forever (for each episode):
    Choose S_0 ∊ S, A_0 ∊ A(S_0) randomly such that all pairs have probability > 0
    Generate an episode from S_0, A_0, following \pi: S_0, A_0, R_1, ..., S_{T-1}, A_{T-1}, R_{T-1}
    G = 0
    Loop for each step of episode, t = T-1, T-2, ..., 0:
        G = 𝛾G + R_{t+1}
        Unless the pair (S_t, A_t) appears in S_0, A_0, S_1, A_1 ..., S_{t-1}, A_{t-1}:
            Append G to Returns(S_t, A_t)
            Q(S_t, A_t) = average(Returns(S_t,A_t))
            \pi(S_t) = argmax_a Q(S_t,a)

Monte Carlo w/o Exploring Starts

• on-policy methods - evaluate/improve the policy used to generate data
• off-policy methods - evaluate/improve the policy different from another policy used to generate data
  • behavior policy - generate behavior
  • target policy - being evaluated or improved

Algorithm parameter: small " > 0
Initialize:
    𝜋 an arbitrary "-soft policy
    Q(s, a) ∊ ℝ (arbitrarily), for all s∊S, a∊A(s)
    Returns(s, a) empty list, for all s∊S, a∊A(s)

Repeat forever (for each episode):
    Generate an episode following 𝜋: S0, A0, R1, ..., ST1, AT1, RT
    G = 0
    Loop for each step of episode, t = T-1, T-2, ..., 0:
    G = 𝛾G + R_{t+1}
    Unless the pair St, At appears in S0, A0, S1, A1 . . . , St-1, At-1:
        Append G to Returns(St, At)
		Q(St, At) = average(Returns(St, At))
		A* = argmax_a Q(St, a)
		For all a ∊ A(St):
			if a = A^*
                𝜋(a|St) = 1 - 𝜀 + 𝜀/|A(St)|
            if a != A^*
		        𝜋(a|St) = 𝜀/|A(St)|

Off-Policy Prediction via Importance Sampling

Given starting state S_t, the probability of the subsequent state-action trajectory (i.e. A_t, S_{t+1}, A_{t+1}, …, S_T) occurring under any policy 𝜋 is:

• $P(A_t,S_{t+1},A_{t+1},...,S_T|S_t,A_{t:T-1}𝜋)=𝜋(A_t|S_t)p(S_{t+1}|S_t,A_t)𝜋(A_{t+1}|S_{t+1})...p(S_T|S_{T-1},A_{T-1})$
• $P(A_t,S_{t+1},A_{t+1},...,S_T|S_t,A_{t:T-1}𝜋)={\prod }_{k=t}^{T-1}𝜋(A_k|S_k)p(S_{k+1}|S_k,A_k)$

Thus, the relative probability of the trajectory under the target and behavior policies (importance sampling ratio) is:

• ${\rho }_{t:T-1}=\frac{{\prod }_{k=t}^{T-1}\pi (A_k|S_k)p(S_{k+1}|S_k,A_k)}{{\prod }_{k=t}^{T-1}b(A_k|S_k)p(S_{k+1}|S_k,A_k)}$
• ${\rho }_{t:T-1}=\frac{{\prod }_{k=t}^{T-1}\pi (A_k|S_k)}{{\prod }_{k=t}^{T-1}b(A_k|S_k)}$

The returns have wrong expectation

• $E[G_t|S_t=s]=v_b(s)$

and so cannot be averaged to obtain v_𝜋. Thus we add the ratio:

• $E[{\rho }_{t:T-1}{G}_t|S_t=s]=v_{\pi }(s)$

Ordinary Importance Sampling

To estimate 𝑣_𝜋(𝑠) scale the returns by the ratios and average the results:

• $V(s)=\frac{{\sum }_{t∊\mathcal{T}(s)}{\rho }_{t:T(t)-1}{G}_t}{|\mathcal{T}(s)|}$

where:

• $\mathcal{T}(s)\text{ is the set of all time steps in which state s is visited}$

Weighted Importance Sampling

• $V(s)=\frac{{\sum }_{t∊\mathcal{T}(s)}{\rho }_{t:T(t)-1}{G}_t}{{\sum }_{t∊\mathcal{T}(s)}{\rho }_{t:T(t)-1}}$

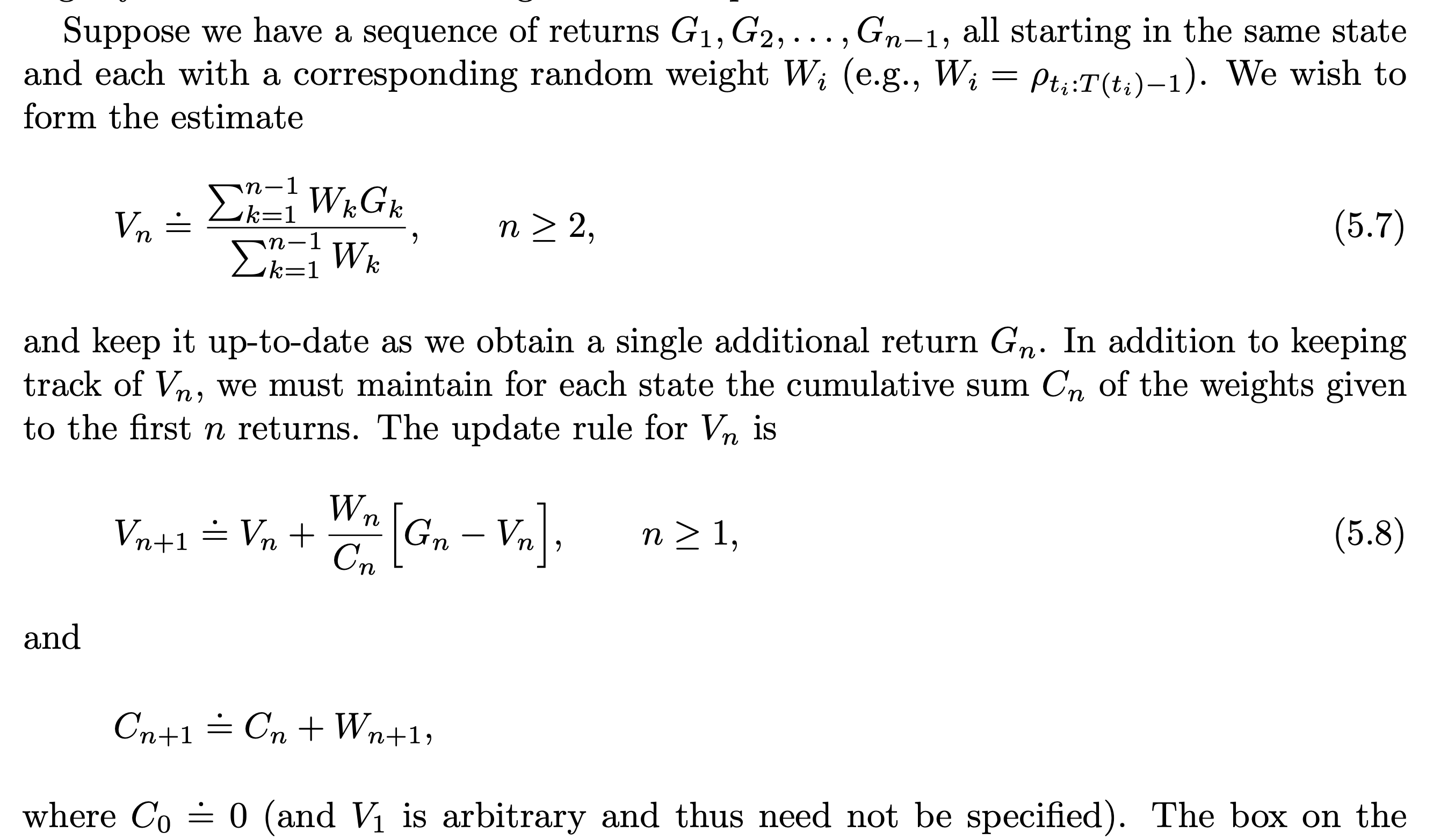

Incremental Implementation

Ordinary Importance Sampling

Can reuse incremental methods of chapter 2.

Weighted Importance Sampling

Off-Policy MC prediction (policy evaluation) for estimating Q ~ q_𝜋:

Input: an arbitrary target policy ⇡
Initialize, for all s 2S, a 2A(s):
    Q(s, a) ∊ ℝ (arbitrarily)
    C(s, a) = 0

Loop forever (for each episode):
	b any policy with coverage of ⇡
	Generate an episode following b: S0, A0, R1, ..., ST1, AT1, RT
	G = 0
	W = 1
	Loop for each step of episode, t= T1, T2, ..., 0, while W != 0:
		G = 𝛾G + R_{t+1}
		C(St, At) = C(St, At) + W
		Q(St, At) = Q(St, At) + [W / C(St,At)] * [G - Q(St,At)]
        W = W * [𝜋(At|St) / b(At|St)]

Off-Policy Monte Carlo Control

Off-policy weighted IS for estimating 𝜋_* and 𝑞_*

Initialize, for all s∊S, a∊A(s):
	Q(s, a) ∊ ℝ (arbitrarily)
	C(s, a) = 0
	𝜋(s) = argmax_a Q(s, a) (with ties broken consistently)

Loop forever (for each episode):
	b = any soft policy
	Generate an episode using b: S0, A0, R1, ..., ST1, AT1, RT
	G = 0
	W = 1
	Loop for each step of episode, t= T1, T2, ..., 0:
		G = 𝛾G + R_{t+1}
		C(St, At) = C(St, At) + W
		Q(St, At) = Q(St, At) + [W / C(St,At)] * [G - Q(St,At)]
		𝜋(St) = argmax_a Q(St, a) (with ties broken consistently)
		If A_t != 𝜋(S_t) then exit inner Loop (proceed to next episode)
		W = W * [1 / b(At|St)]
