Value-Function Approximation

individual update notation:

• 𝑠 ↦ 𝑢

where:

• 𝑠 - state updated
• 𝑢 - update target

for example:

Prediction Objective (Mean Squared Value Error (VE))

denoted as:

• $\overline{VE}(w)={\sum }_{s\in S}\mu (s)[v_{\pi }(s)-\hat{v}(s,w){]}^2$

where:

• $\mu (s)>=0,{\sum }_s\mu (s)=1$
• $\text{error in state }s=v_{\pi }(s)-\hat{v}(s,w)$
• $\hat{v}(s,w)\text{ approximate value}$
• $v_{\pi }(s)\text{ true value}$

Stochastic Gradient Descent (SGD)

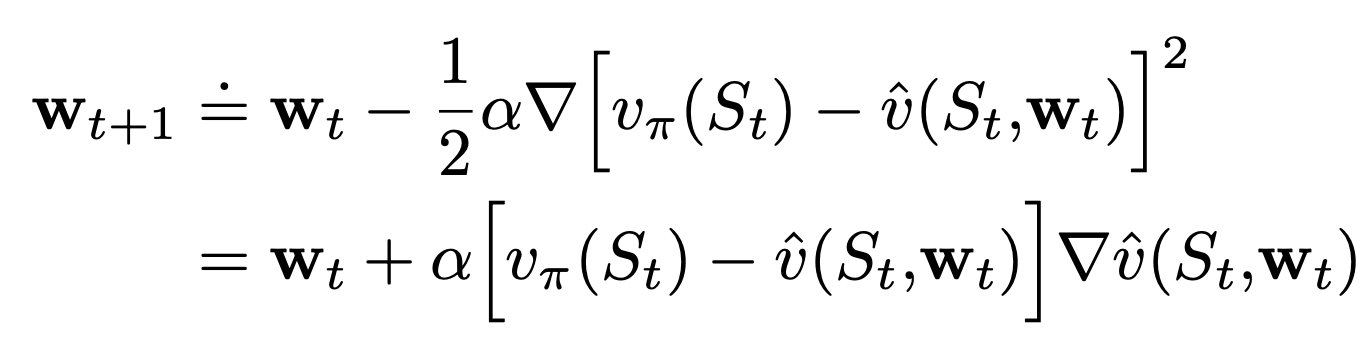

Stochastic gradient-descent (SGD) methods do this by adjusting the weight vector after each example by a small amount in the direction that would most reduce the error on that example:

Indent

Gradient of 𝑓 wrt 𝑤:

Indent

𝑣_𝜋(𝑆_𝑡) is usually noise corrupted, so 𝑈_𝑡:

• $w_{t+1}=w_t+\alpha [U_t-\hat{v}(S_t,w_t)]\nabla \hat{v}(S_t,w_t)$

Gradient MC Algorithm for estimating 𝑣ˆ ~ 𝑣_𝜋:

Input: the policy 𝜋 to be evaluated
Input: a differentiable function vˆ : S x ℝ^d -> ℝ
Algorithm parameter: step size 𝛼 > 0
Initialize value-function weights w∊ℝ^d arbitrarily (e.g., w = 0)

Loop forever (for each episode):
	Generate an episode S0, A0, R1, S1, A1, ..., RT, ST using 𝜋
	Loop for each step of episode, t = 0, 1, ..., T1:
		w = w + 𝛼 [G_t - vˆ(S_t,w)] 𝛻vˆ(S_t,w)

Semi-Gradient TD(0) for estimating 𝑣ˆ ~ 𝑣_𝜋:

use the following as target:

• $U_t=R_{t+1}+\gamma \hat{v}(S_{t+1},w)$

Input: the policy 𝜋 to be evaluated
Input: a differentiable function vˆ : S x ℝ^d -> ℝ such that vˆ(terminal,·) = 0
Algorithm parameter: step size 𝛼 > 0
Initialize value-function weights w∊ℝ^d arbitrarily (e.g., w = 0)

Loop for each episode:
	Initialize S
	Loop until S is terminal:
		Choose A ~ 𝜋(·|S)
		Take action A, observe R, S'
		w = w + 𝛼 [R + 𝛾vˆ(S',w) - vˆ(S,w)] 𝛻vˆ(S,w)
		S = S'

Linear Methods

given an x(s) real-valued vector

in the linear case SGD update simplifies to the form:

• $w_{t+1}=w_t+\alpha [U_t-\hat{v}(S_t,w_t)]x(S_t)$

Feature Construction for Linear Methods

• polynomials
• fourier basis
• coarse coding - it sits conceptually between:
  • tabular representation (each state has its own feature)
  • global approximations like polynomial or Fourier bases
• tile coding - a form of course coding
• radial basis functions

coarse coding vs tile coding

• coarse coding - arbitrary overlapping shapes, varying sizes
• tile coding - grids of tiles, arranged in “tilings,” each covering space evenly

Selecting Step-Size Parameters Manually
