Top-Down Search/Parsing	Bottom-Up Search/Parsing

since we’re trying to find trees rooted with an `S`, why not start with the rules that give us an `S`, then work our way down to the terminal words	we also want trees that cover the input word. So start with trees that link up words in the right way, then work our way up to form larger trees
only searches for trees that can be answers	only forms trees consistent with the input words
suggests trees that are not consistent with any of the words	suggest trees that make no sense globally
rules are applied from left to right	rules are applied from right to left

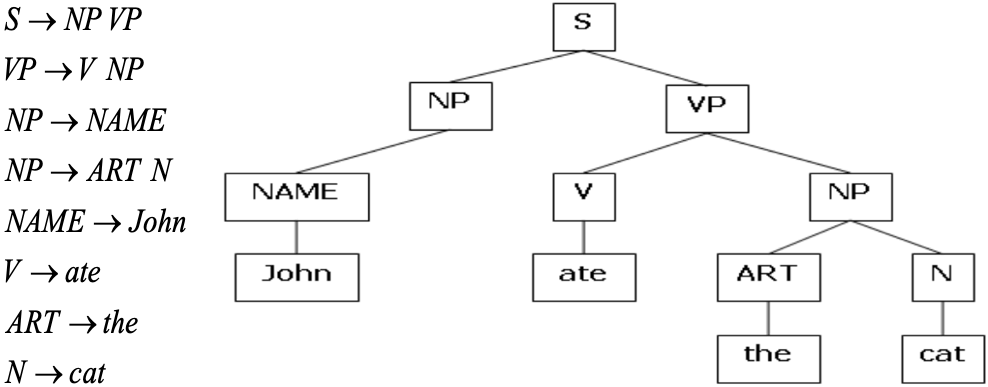

`S` `NP VP` `NAME VP` `John VP` `John V NP` `John ate NP` `John ate ART N` `John ate the N` `John ate the cat`	`John ate the cat` `NAME ate the cat` `NAME V the cat` `NAME V ART cat` `NAME V ART N` `NP V ART N` `NP V NP` `NP VP` `S`

Constituency Parsing - Control

in both cases we left out how to keep track of the search space and how to make choices:
- which node to try to expand next (DFS vs BFS)
- which grammar rule to use to expand the node
one approach is called back tracking: make a choice, if it doesn’t work then back up and make a different choice

Constituency Parsing - With Backtracking

Depth-First Search - the states form a stack LIFO policy
Breadth-First Search - the states form a queue FIFO policy

example backtracking

Given

Top-Down DFS Search

sentence:

1 The 2 old 3 man 4 cried 5

lexicon:

the: ART
old: ADJ, N
man: N, V
cried: V

grammar:

S → NP VP
NP → ART N
NP → ART ADJ N
VP → V
VP → V NP

CURRENT-STATE | BACKUP-STATES

1. S 1 |
2. NP VP 1 |
3. ART N VP 1 | ART ADJ N VP 1
4. N VP 2 | ART ADJ N VP 1
5. VP 3 | ART ADJ N VP 1
6. V 3 | ART ADJ N VP 1 | V NP 3
7. 4 | ART ADJ N VP 1 | V NP 3
8. V NP 3 | ART ADJ N VP 1
9. NP 4 | ART ADJ N VP 1
10. ART N 4 | ART ADJ N VP 1 | ART ADJ N 4
11. ART ADJ N 4 | ART ADJ N VP 1
12. ART ADJ N VP 1 |
13. ADJ N VP 2 |
14. N VP 3 |
15. VP 4 |
16. V 4 | V NP 4
17. 5 |

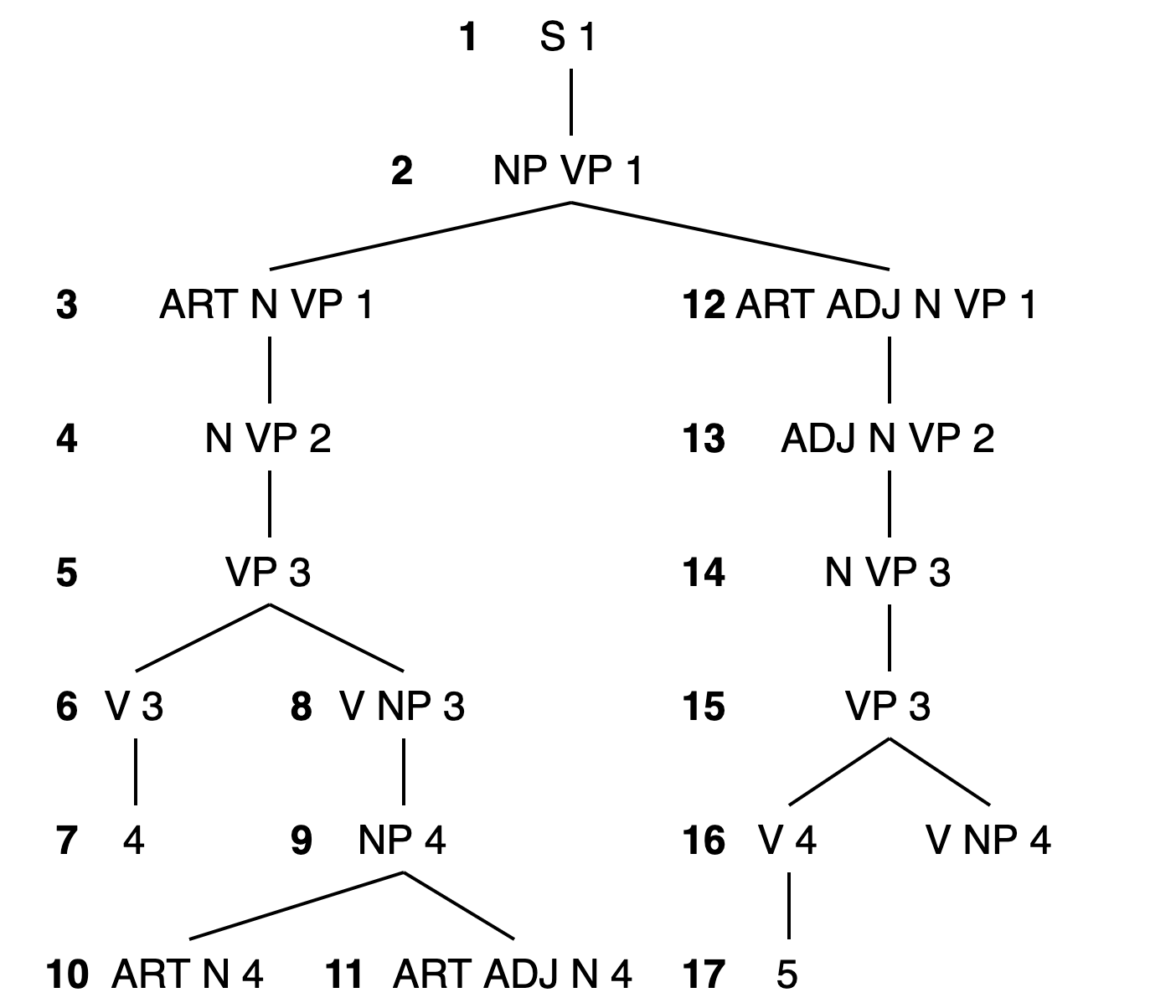

Traversal Tree

top-down-traversal-tree.drawio

Problems

even with best filtering, backtracking methods are doomed because of two inter-related problems:

ambiguity -
shared sub-problems - no matter what kind of search (top-down or bottom-up or mixed):
- we don’t want to redo work we have already done
- unfortunately, naive backtracking will lead to duplicated work

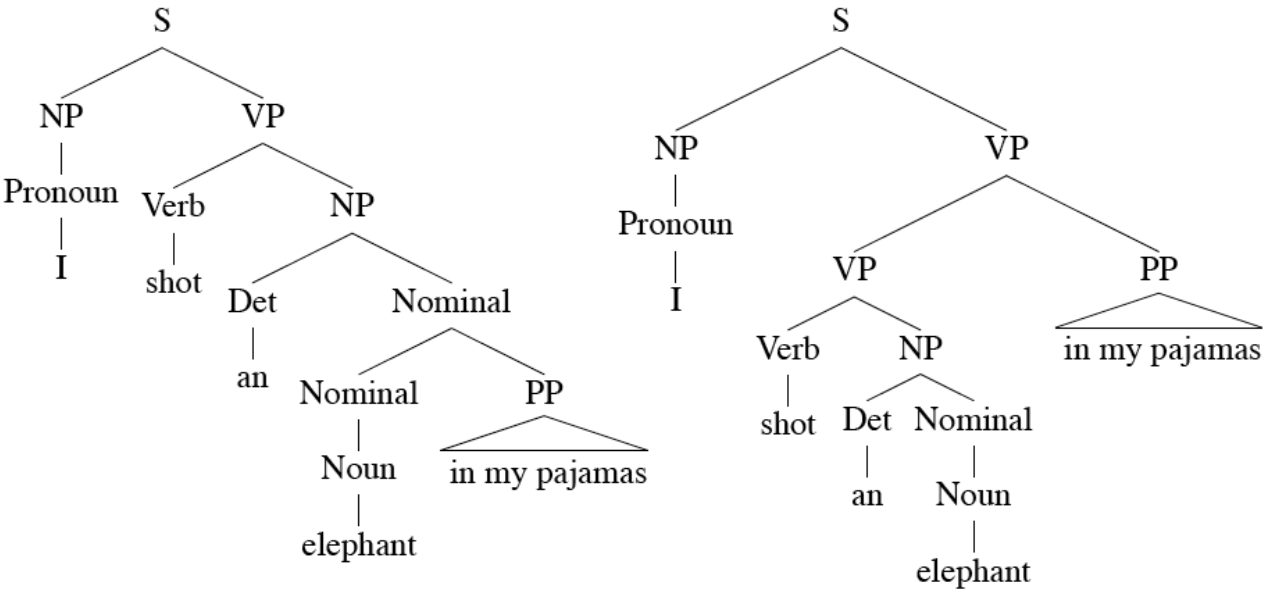

Ambiguity
