Rendering 3D Gaussian Splatting (3DGS) File Formats
Engine API - PLY / Bundled SOG File
Rendering:
- 3DGS Polygon File Format (PLY)
- Bundled SOG File
<!DOCTYPE html> <html lang="en"> <head> <meta charset="utf-8"> <style> body { margin: 0; overflow: hidden; } </style> <script type="importmap"> { "imports": { "playcanvas": "https://cdn.jsdelivr.net/npm/playcanvas/+esm" } } </script> </head> <body> <script type="module" src="main.js"></script> </body> </html>import { Application, Asset, AssetListLoader, Entity, FILLMODE_FILL_WINDOW, RESOLUTION_AUTO } from 'playcanvas'; // Create application const canvas = document.createElement('canvas'); document.body.appendChild(canvas); const app = new Application(canvas, { graphicsDeviceOptions: { antialias: false } }); app.setCanvasFillMode(FILLMODE_FILL_WINDOW); app.setCanvasResolution(RESOLUTION_AUTO); app.start(); window.addEventListener('resize', () => app.resizeCanvas()); // Load assets const assets = [ new Asset('camera-controls', 'script', { url: 'https://cdn.jsdelivr.net/npm/playcanvas/scripts/esm/camera-controls.mjs' }), new Asset('toy', 'gsplat', { url: 'https://developer.playcanvas.com/assets/toy-cat.sog' }) ]; const loader = new AssetListLoader(assets, app.assets); await new Promise(resolve => loader.load(resolve)); // Create camera entity const camera = new Entity('Camera'); camera.setPosition(0, 0, 2.5); camera.addComponent('camera'); camera.addComponent('script'); camera.script.create('cameraControls'); app.root.addChild(camera); // Create splat entity const splat = new Entity('Toy Cat'); splat.setPosition(0, -0.7, 0); splat.setEulerAngles(0, 0, 180); splat.addComponent('gsplat', { asset: assets[1] }); app.root.addChild(splat);
Engine API - Unbundled SOG

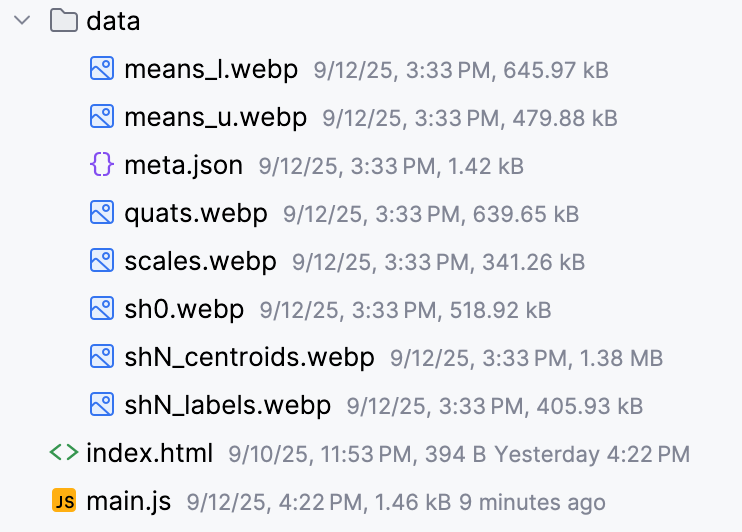

Rendering unbundled SOG
<!DOCTYPE html> <html lang="en"> <head> <meta charset="utf-8"> <style> body { margin: 0; overflow: hidden; } </style> <script type="importmap"> { "imports": { "playcanvas": "https://cdn.jsdelivr.net/npm/playcanvas/+esm" } } </script> </head> <body> <script type="module" src="main.js"></script> </body> </html>import { Application, Asset, AssetListLoader, Entity, FILLMODE_FILL_WINDOW, RESOLUTION_AUTO } from 'playcanvas'; // Create application const canvas = document.createElement('canvas'); document.body.appendChild(canvas); const app = new Application(canvas, { graphicsDeviceOptions: { antialias: false } }); app.setCanvasFillMode(FILLMODE_FILL_WINDOW); app.setCanvasResolution(RESOLUTION_AUTO); app.start(); window.addEventListener('resize', () => app.resizeCanvas()); // Load assets const assets = [ new Asset('camera-controls', 'script', { url: 'https://cdn.jsdelivr.net/npm/playcanvas/scripts/esm/camera-controls.mjs' }), new Asset(null, 'gsplat', {url: 'data/meta.json'}, null, { mapUrl: mapUrl => { return 'data/' + mapUrl; // for fetching *.webp files } }) ]; const loader = new AssetListLoader(assets, app.assets); await new Promise(resolve => loader.load(resolve)); // Create camera entity const camera = new Entity('Camera'); camera.setPosition(0, 0, 2.5); camera.addComponent('camera'); camera.addComponent('script'); camera.script.create('cameraControls'); app.root.addChild(camera); // Create splat entity const splat = new Entity('Toy Cat'); splat.setPosition(0, 0, 0); splat.setEulerAngles(0, 0, 180); splat.addComponent('gsplat', { asset: assets[1] }); //splat.gsplat.material.setDefine('GSPLAT_AA', true); //splat.gsplat.highQualitySH = true; app.root.addChild(splat);
Web Components - PLY / Bundled SOG File
<!DOCTYPE html> <html lang="en"> <head> <meta charset="UTF-8"> <meta name="viewport" content="width=device-width, initial-scale=1.0, maximum-scale=1.0, user-scalable=no"> <title>My PlayCanvas Web Components App</title> <script type="importmap"> { "imports": { "playcanvas": "https://cdn.jsdelivr.net/npm/playcanvas@latest/build/playcanvas.mjs" } } </script> <script type="module" src="https://cdn.jsdelivr.net/npm/@playcanvas/web-components@latest/dist/pwc.mjs"></script> <style> body { margin: 0; overflow: hidden; } </style> </head> <body> <!-- Your PlayCanvas Web Components elements go here --> <pc-app antialias="false" high-resolution="false"> <pc-asset src="https://cdn.jsdelivr.net/npm/playcanvas/scripts/esm/camera-controls.mjs"></pc-asset> <pc-asset id="toy" src="https://developer.playcanvas.com/assets/toy-cat.sog"></pc-asset> <pc-scene> <pc-entity position="0 0 2.5"> <pc-camera></pc-camera> <pc-scripts> <pc-script name="cameraControls"></pc-script> </pc-scripts> </pc-entity> <pc-entity position="0 -0.7 0" rotation="0 0 180"> <pc-splat asset="toy"></pc-splat> </pc-entity> </pc-scene> </pc-app> </body> </html>
