Arty S7 50 - Blinky Vivado 2022.2

based on: https://community.element14.com/technologies/fpga-group/b/blog/posts/arty-s7-50-first-power-up-and-hardware_2d00_only-blinky

Install Vivado

Open Vivado

Click on “Create Project”

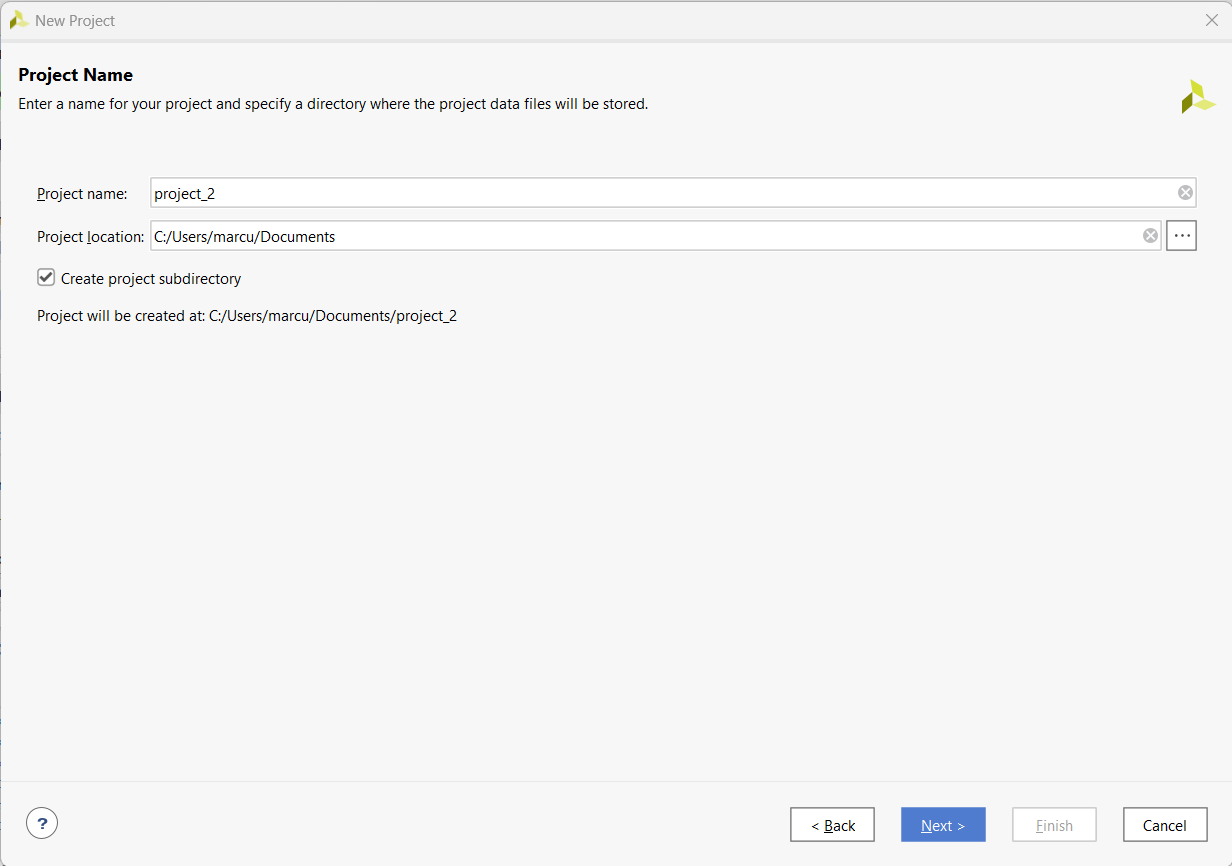

Enter project name

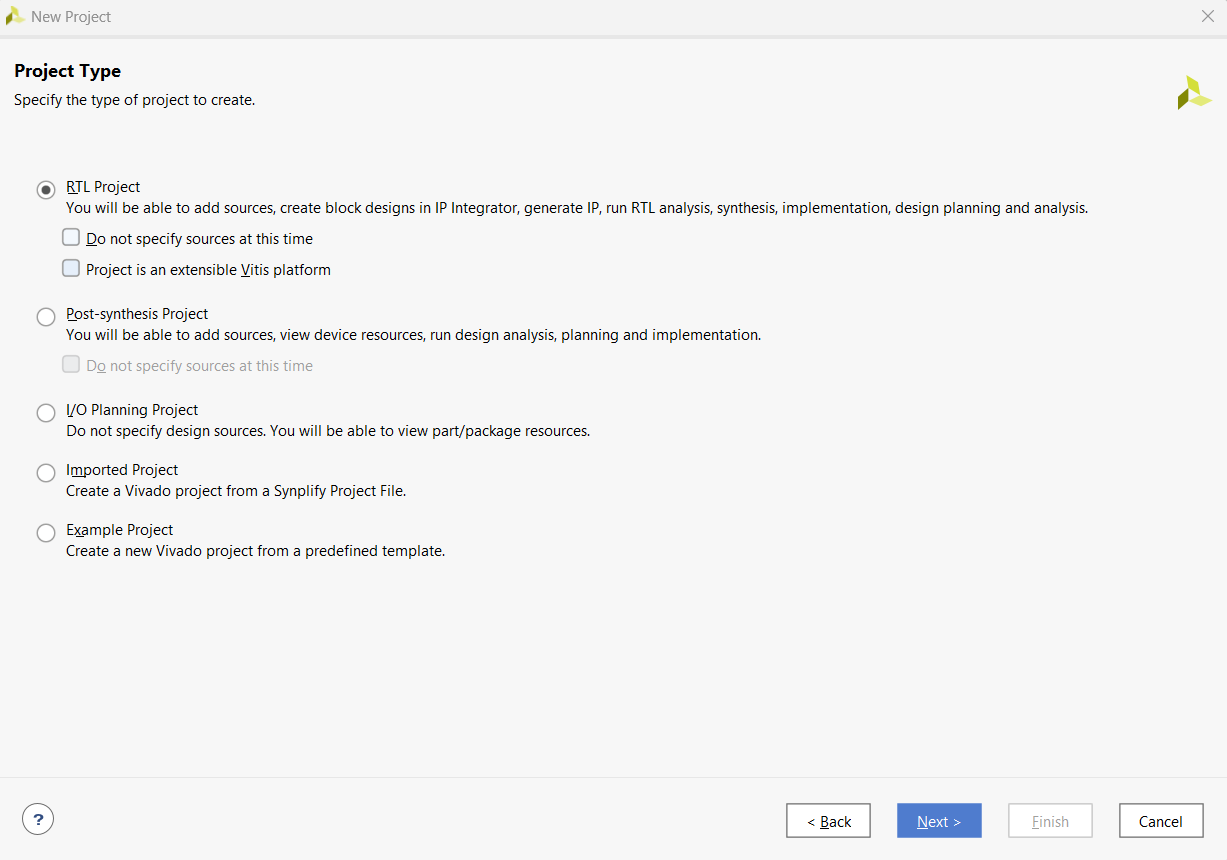

Choose RTL Project

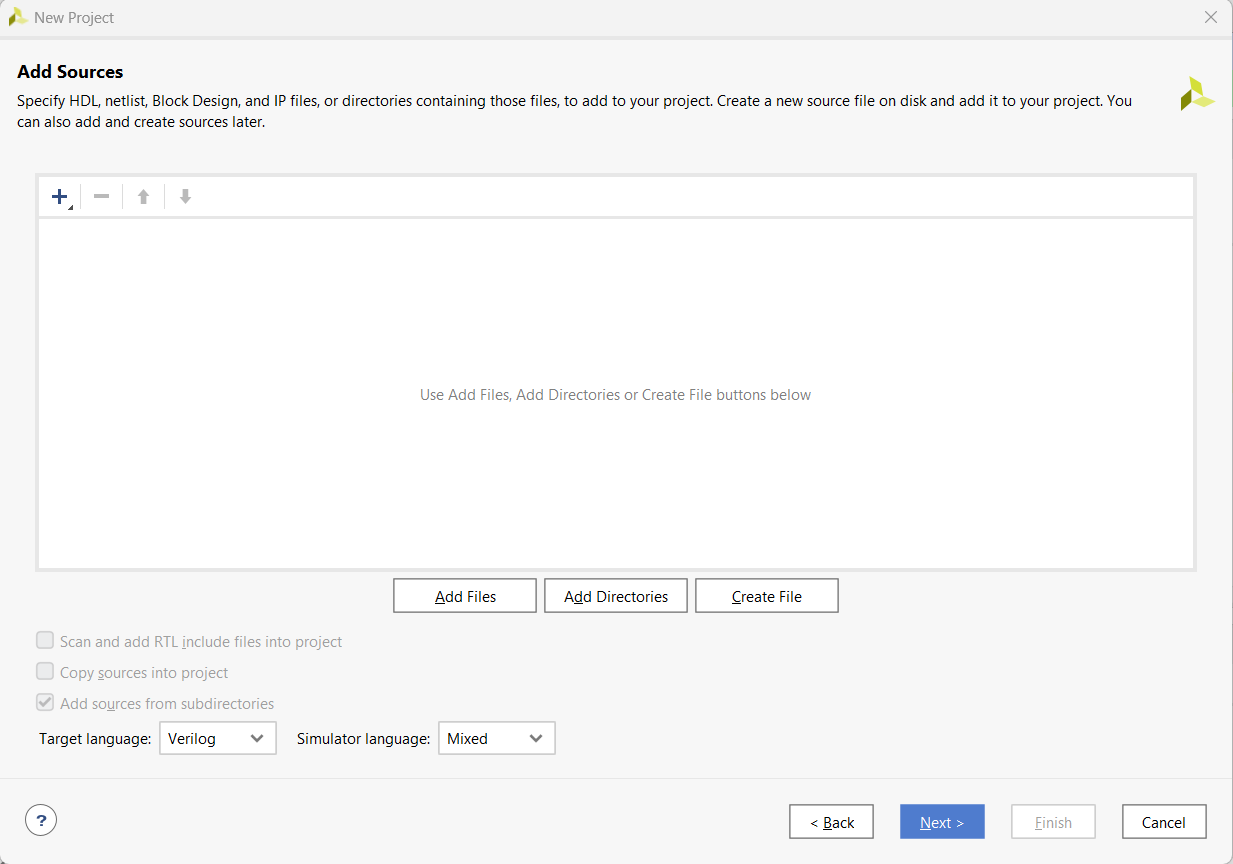

Skip “Add Sources”

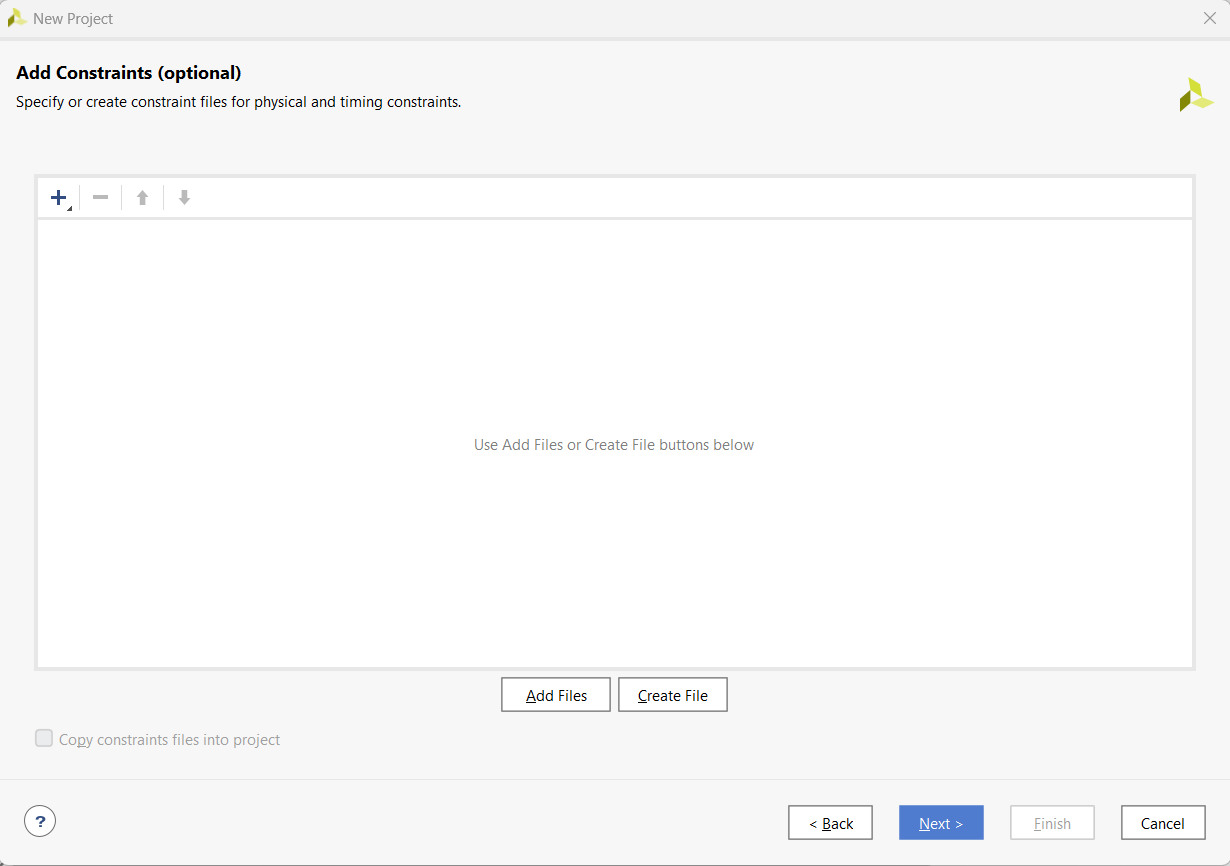

Skip “Add Constraints”

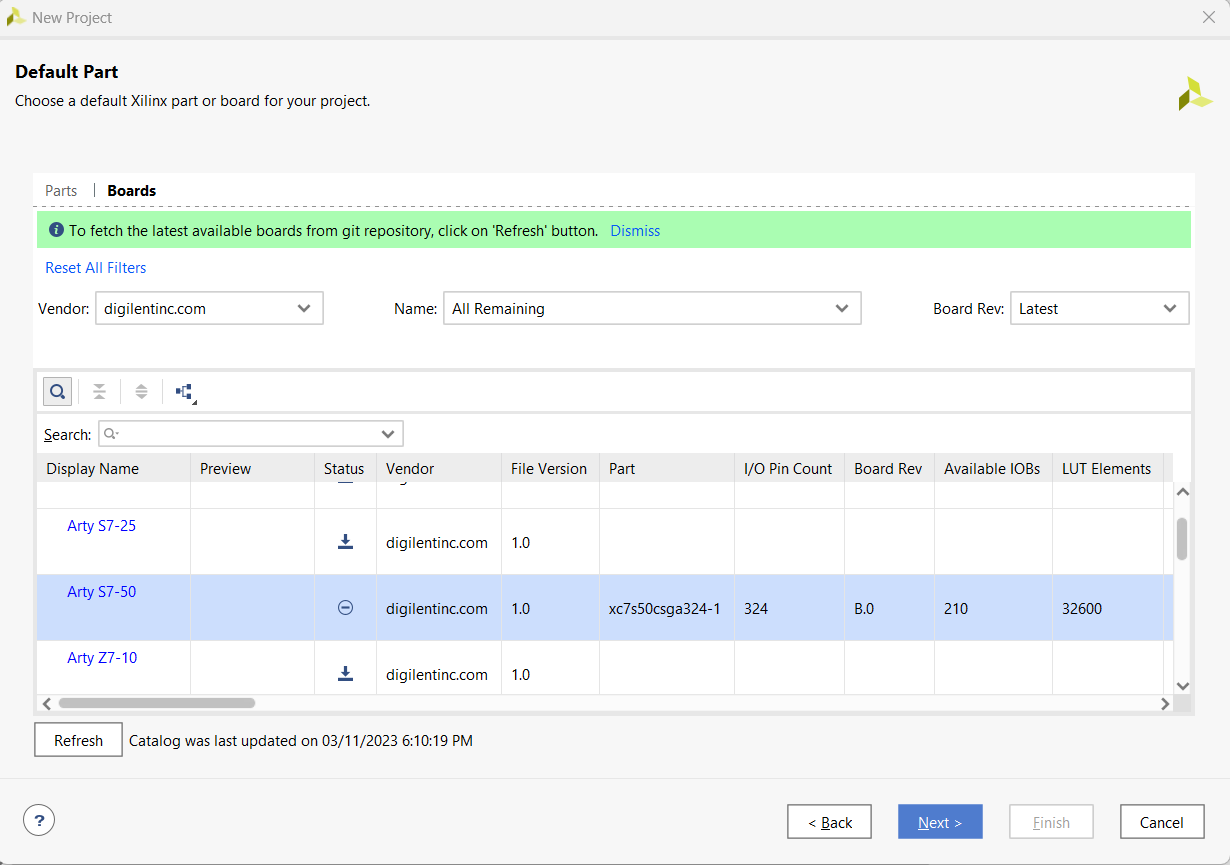

Choose “Boards” tab and click “Refresh” button. Choose diligent as vendor drop-down. Find your target board and click on the download icon. Select it and click “Next”

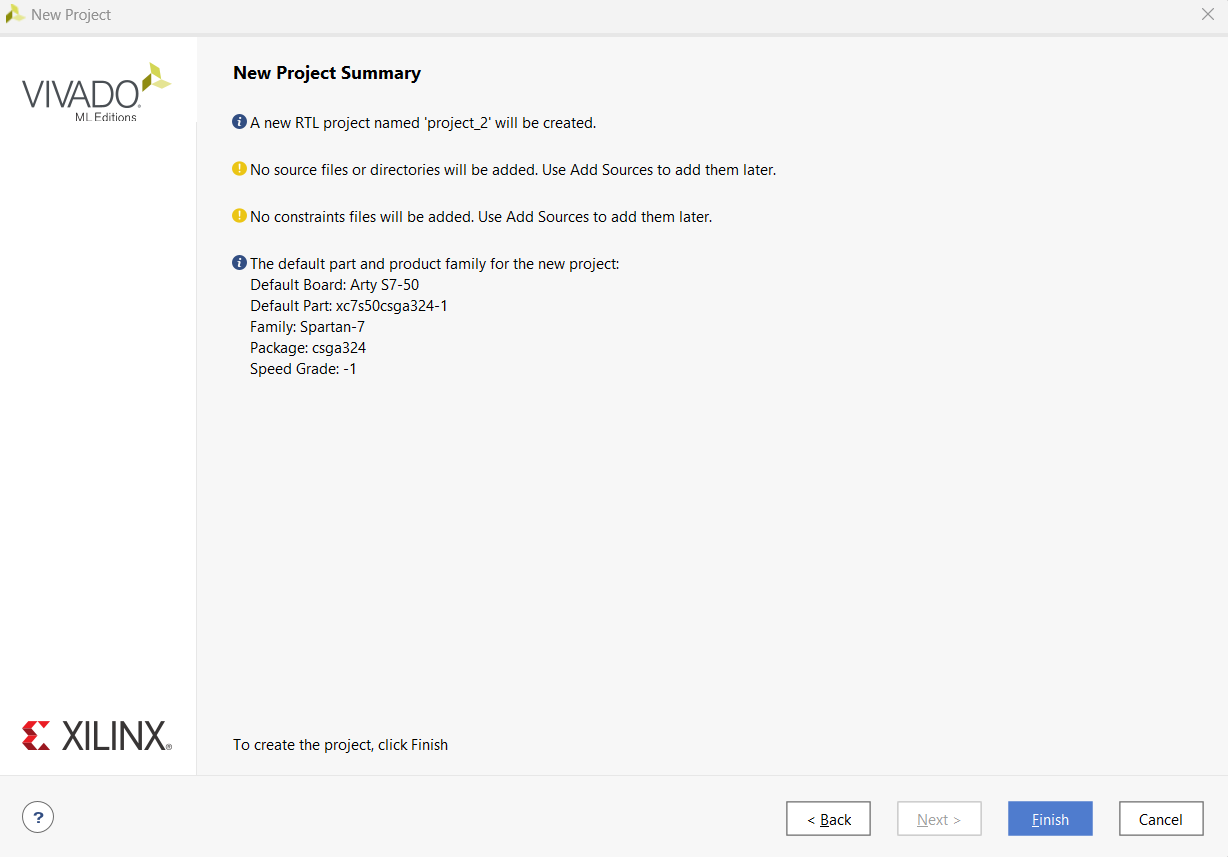

Click “Finish”

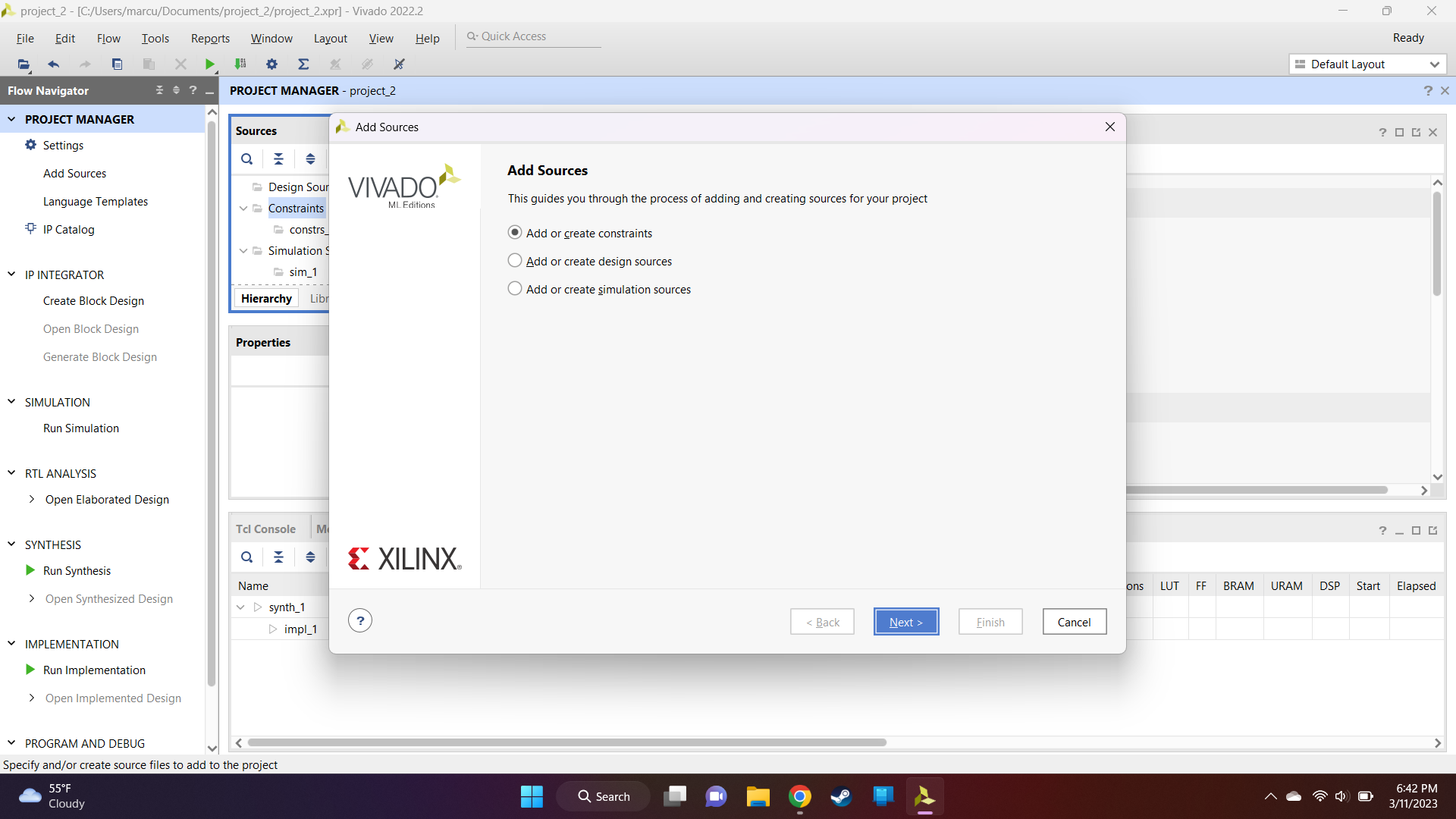

Add constraints

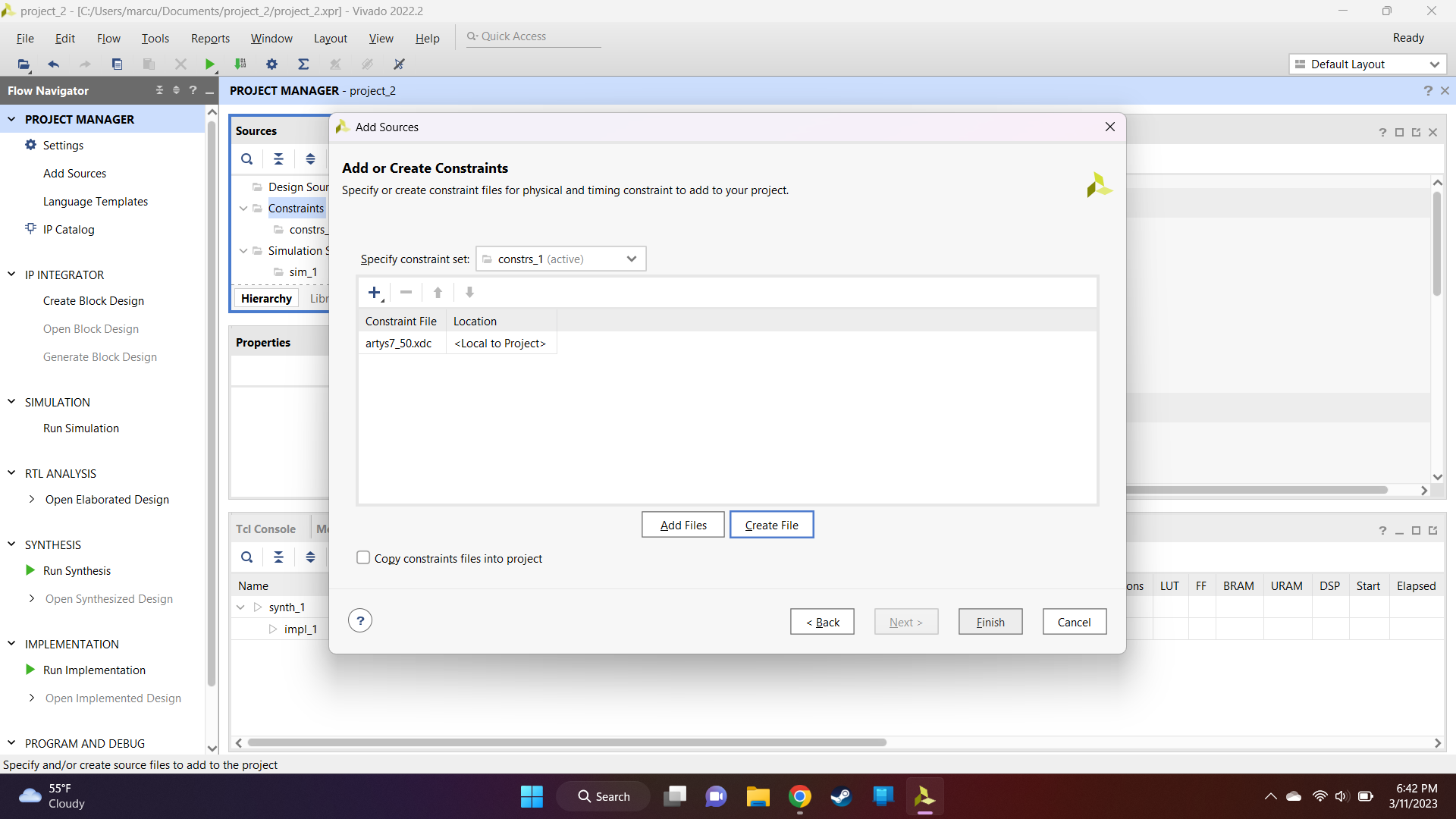

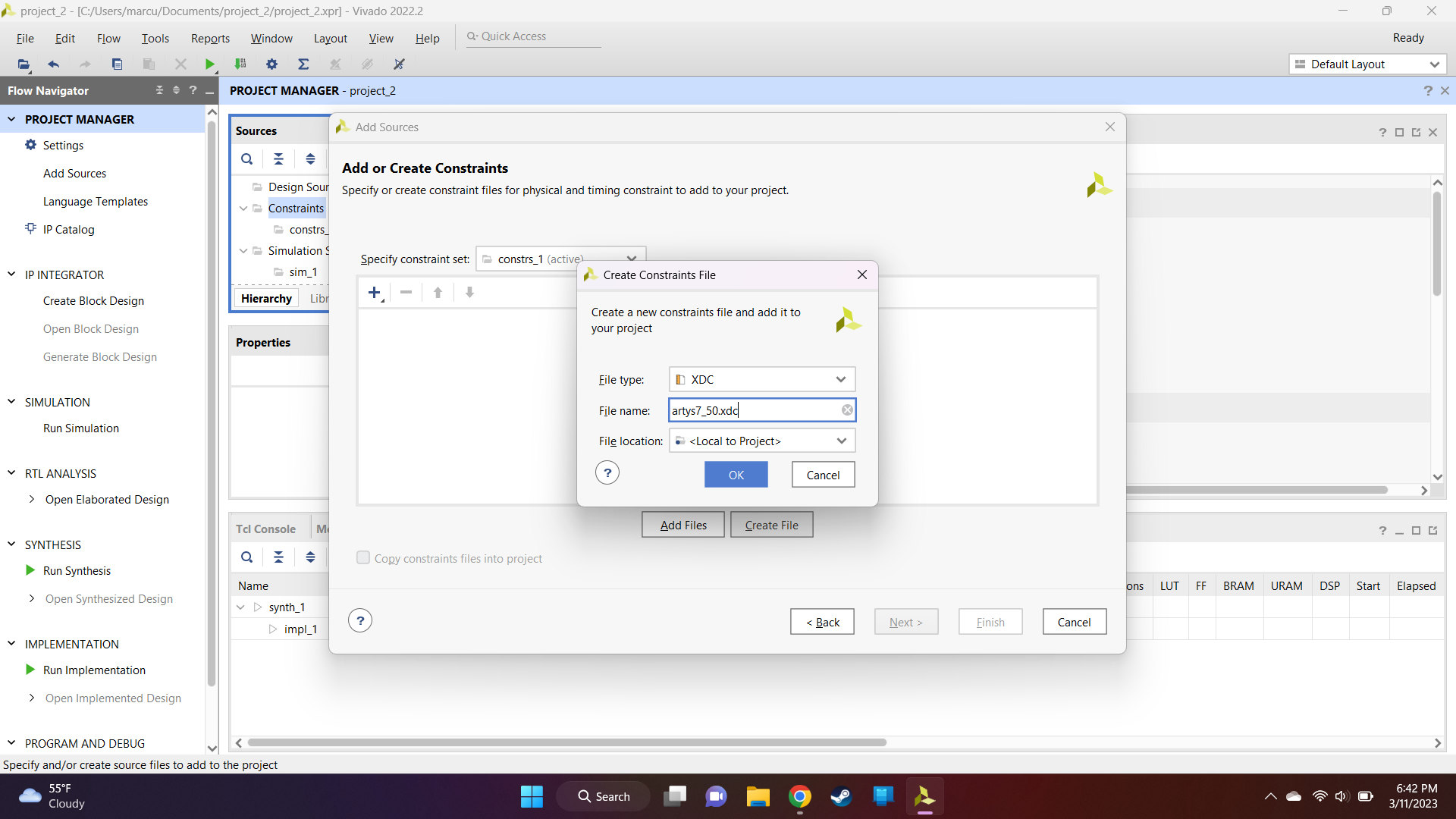

Click on “Create File” button

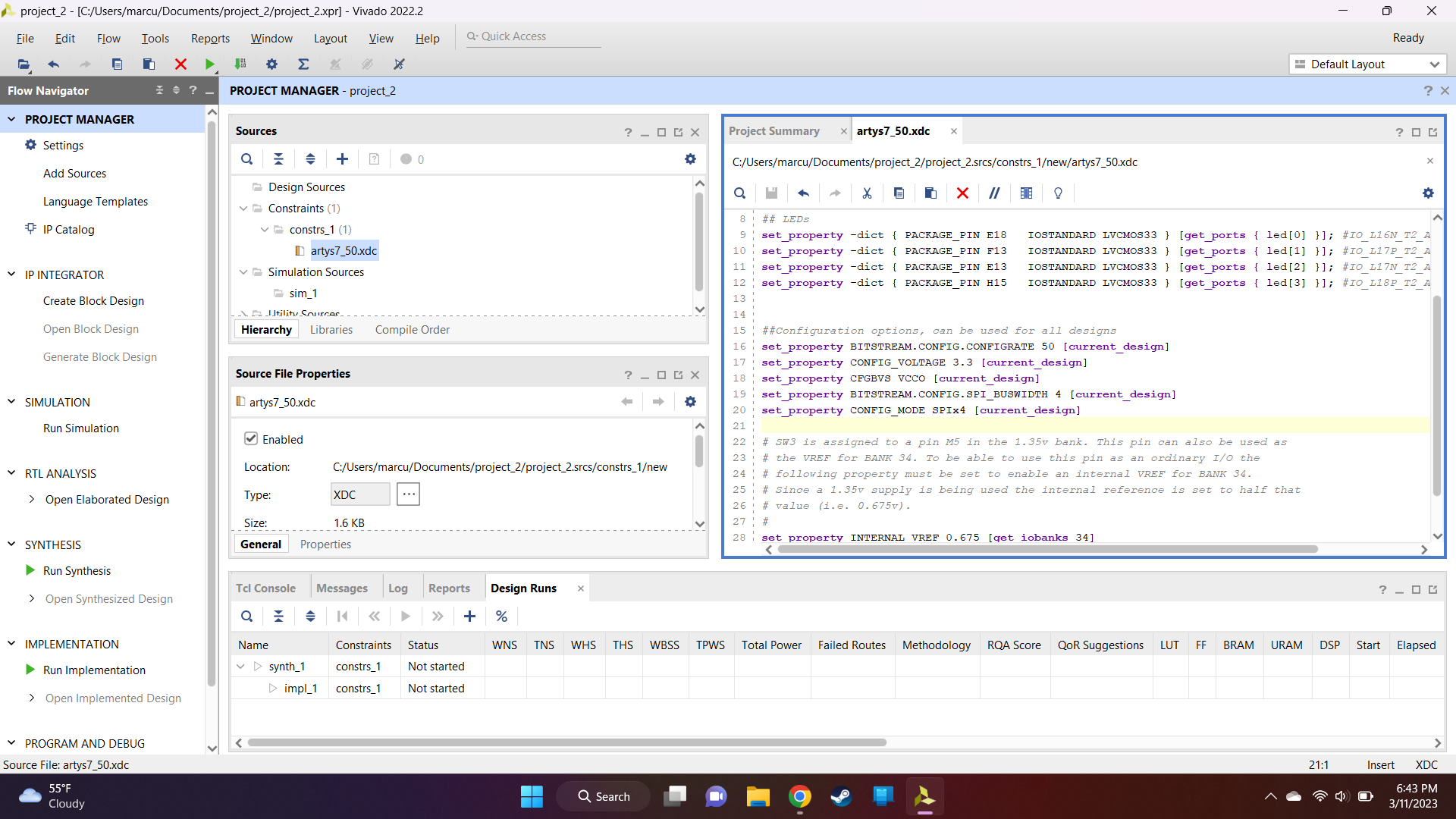

Click on the created file and add the following constraints

Click here to expand...

Below is modified version of Master Constraint File https://github.com/Digilent/digilent-xdc/blob/master/Arty-S7-50-Master.xdc

## Clock Signals
set_property -dict { PACKAGE_PIN F14   IOSTANDARD LVCMOS33 } [get_ports { clk }]; #IO_L13P_T2_MRCC_15 Sch=uclk
create_clock -add -name sys_clk_pin -period 83.333 -waveform {0 41.667} [get_ports { clk }];

## Switches
set_property -dict { PACKAGE_PIN H14   IOSTANDARD LVCMOS33 } [get_ports { sw }]; #IO_L20N_T3_A19_15 Sch=sw[0]

## LEDs
set_property -dict { PACKAGE_PIN E18   IOSTANDARD LVCMOS33 } [get_ports { led[0] }]; #IO_L16N_T2_A27_15 Sch=led[2]
set_property -dict { PACKAGE_PIN F13   IOSTANDARD LVCMOS33 } [get_ports { led[1] }]; #IO_L17P_T2_A26_15 Sch=led[3]
set_property -dict { PACKAGE_PIN E13   IOSTANDARD LVCMOS33 } [get_ports { led[2] }]; #IO_L17N_T2_A25_15 Sch=led[4]
set_property -dict { PACKAGE_PIN H15   IOSTANDARD LVCMOS33 } [get_ports { led[3] }]; #IO_L18P_T2_A24_15 Sch=led[5]

##Configuration options, can be used for all designs
set_property BITSTREAM.CONFIG.CONFIGRATE 50 [current_design]
set_property CONFIG_VOLTAGE 3.3 [current_design]
set_property CFGBVS VCCO [current_design]
set_property BITSTREAM.CONFIG.SPI_BUSWIDTH 4 [current_design]
set_property CONFIG_MODE SPIx4 [current_design]

# SW3 is assigned to a pin M5 in the 1.35v bank. This pin can also be used as
# the VREF for BANK 34. To be able to use this pin as an ordinary I/O the
# following property must be set to enable an internal VREF for BANK 34.
# Since a 1.35v supply is being used the internal reference is set to half that
# value (i.e. 0.675v).
#
set_property INTERNAL_VREF 0.675 [get_iobanks 34]

set_property BITSTREAM.GENERAL.COMPRESS TRUE [current_design]

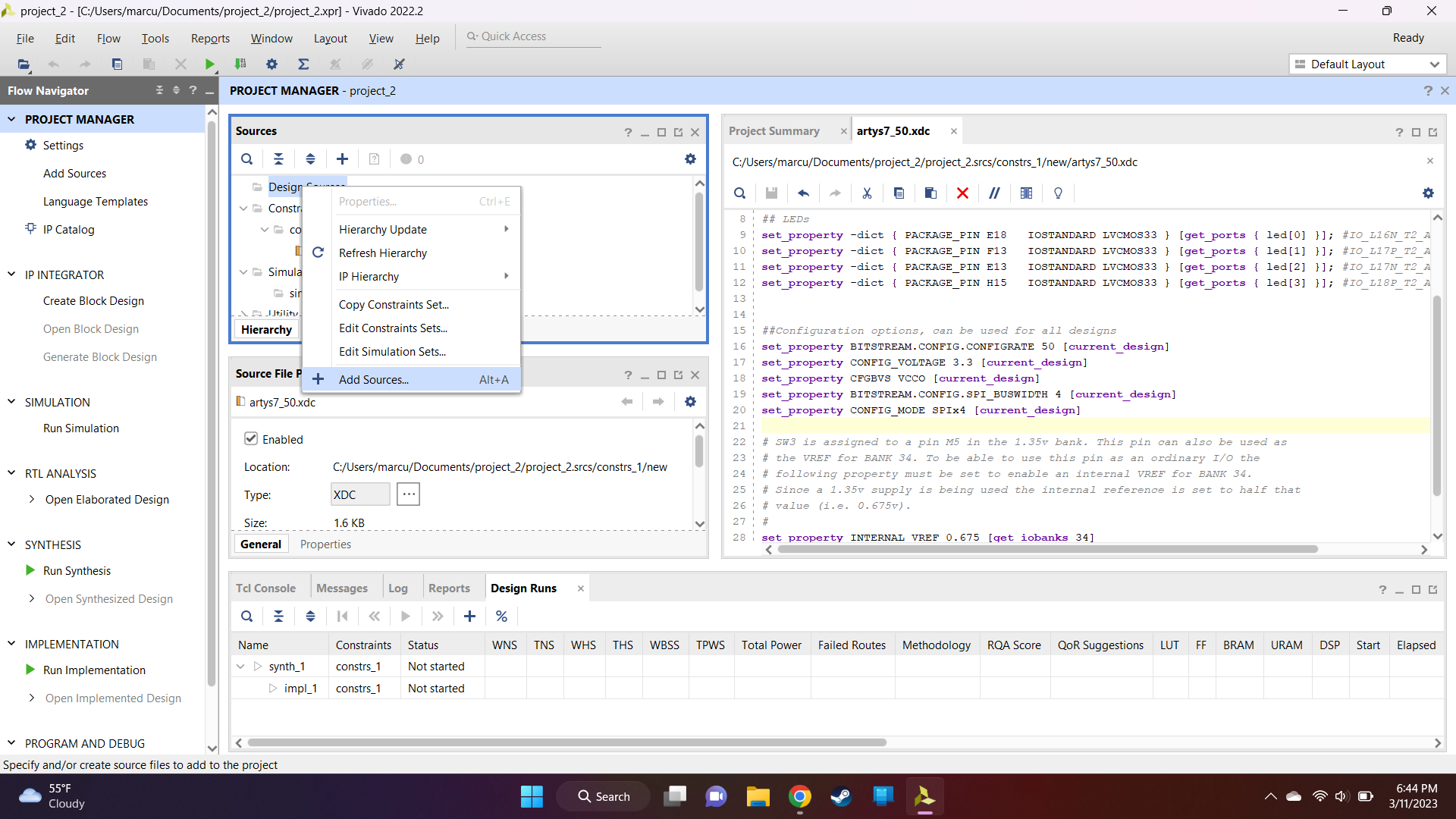

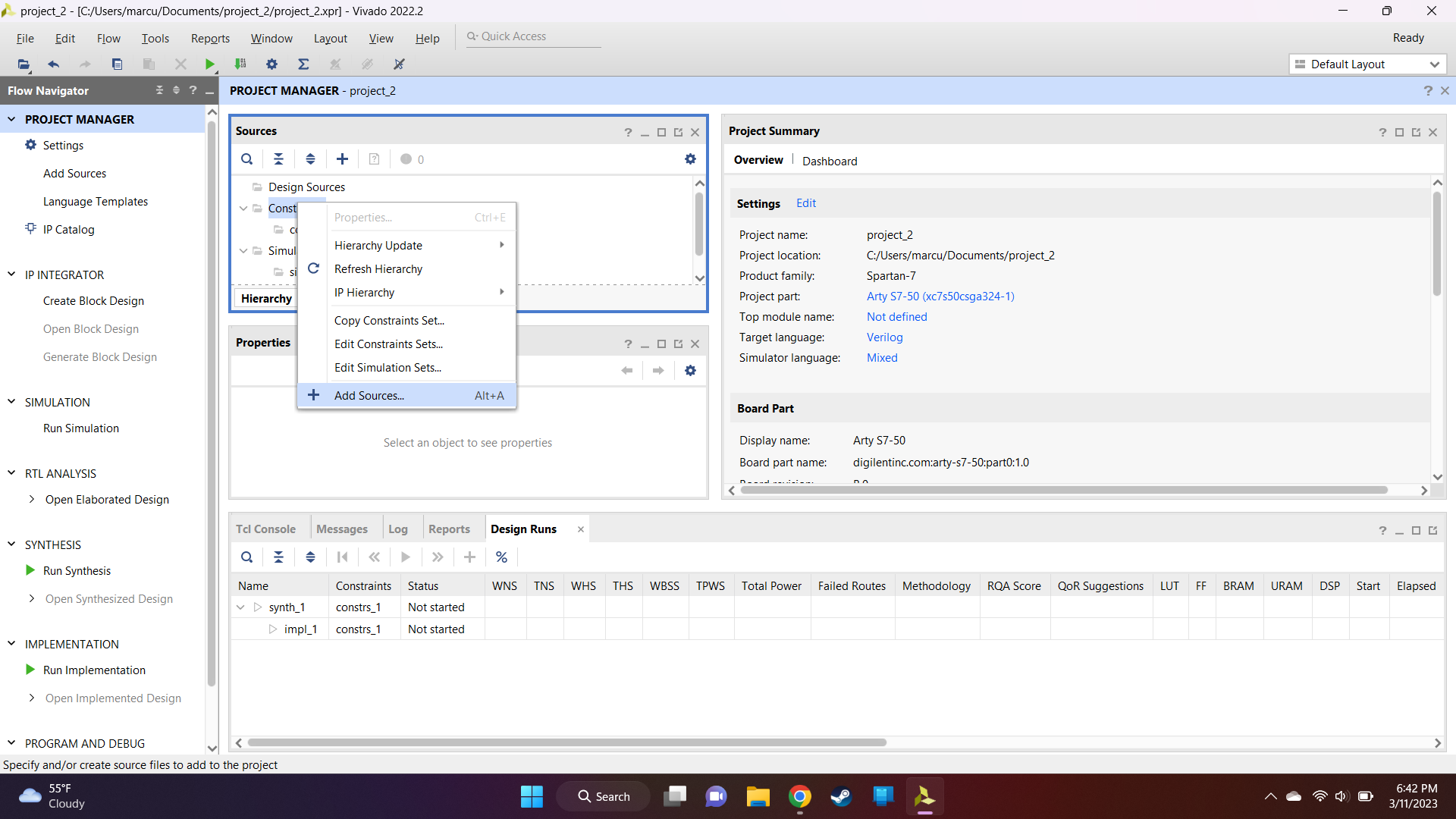

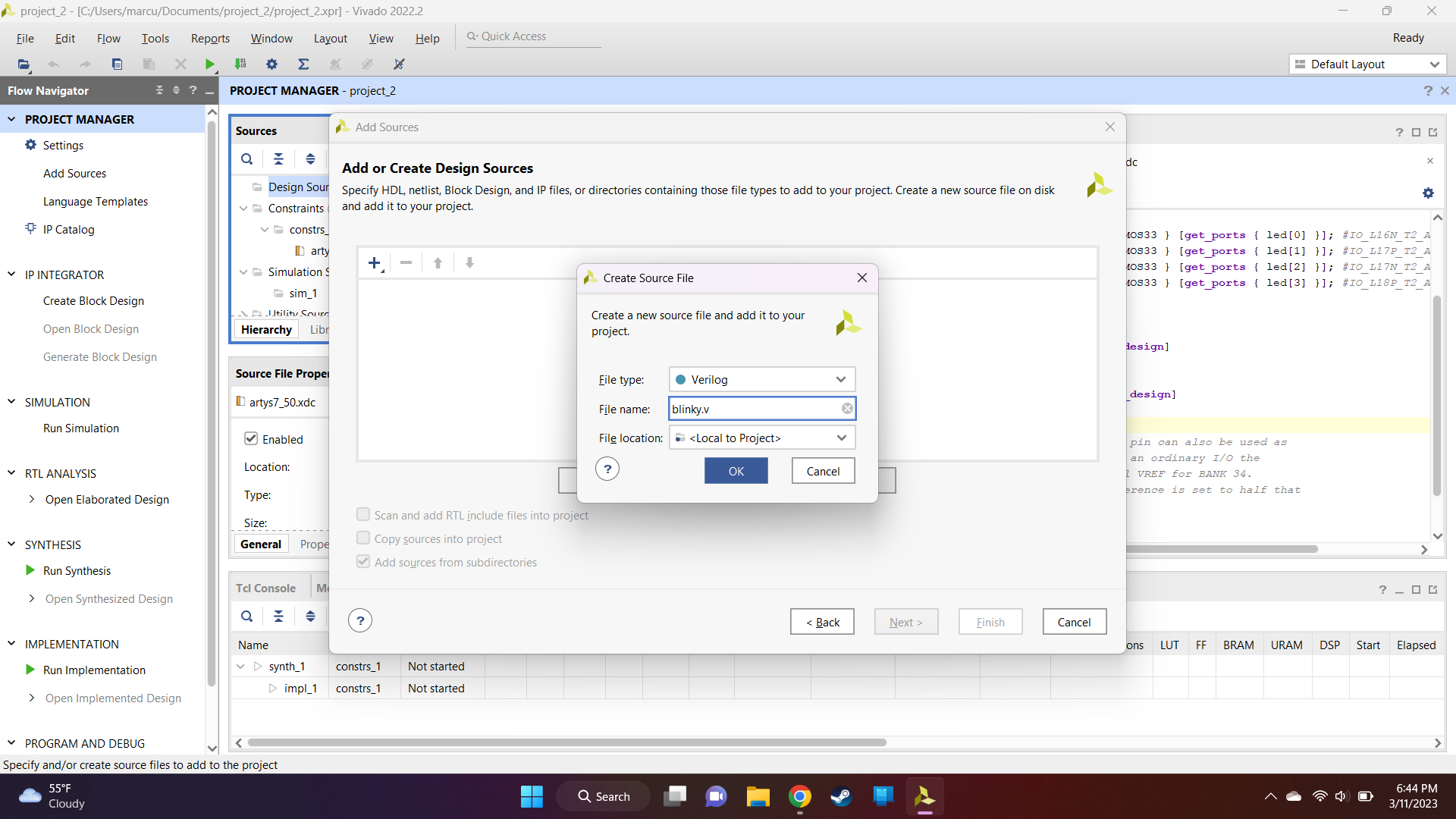

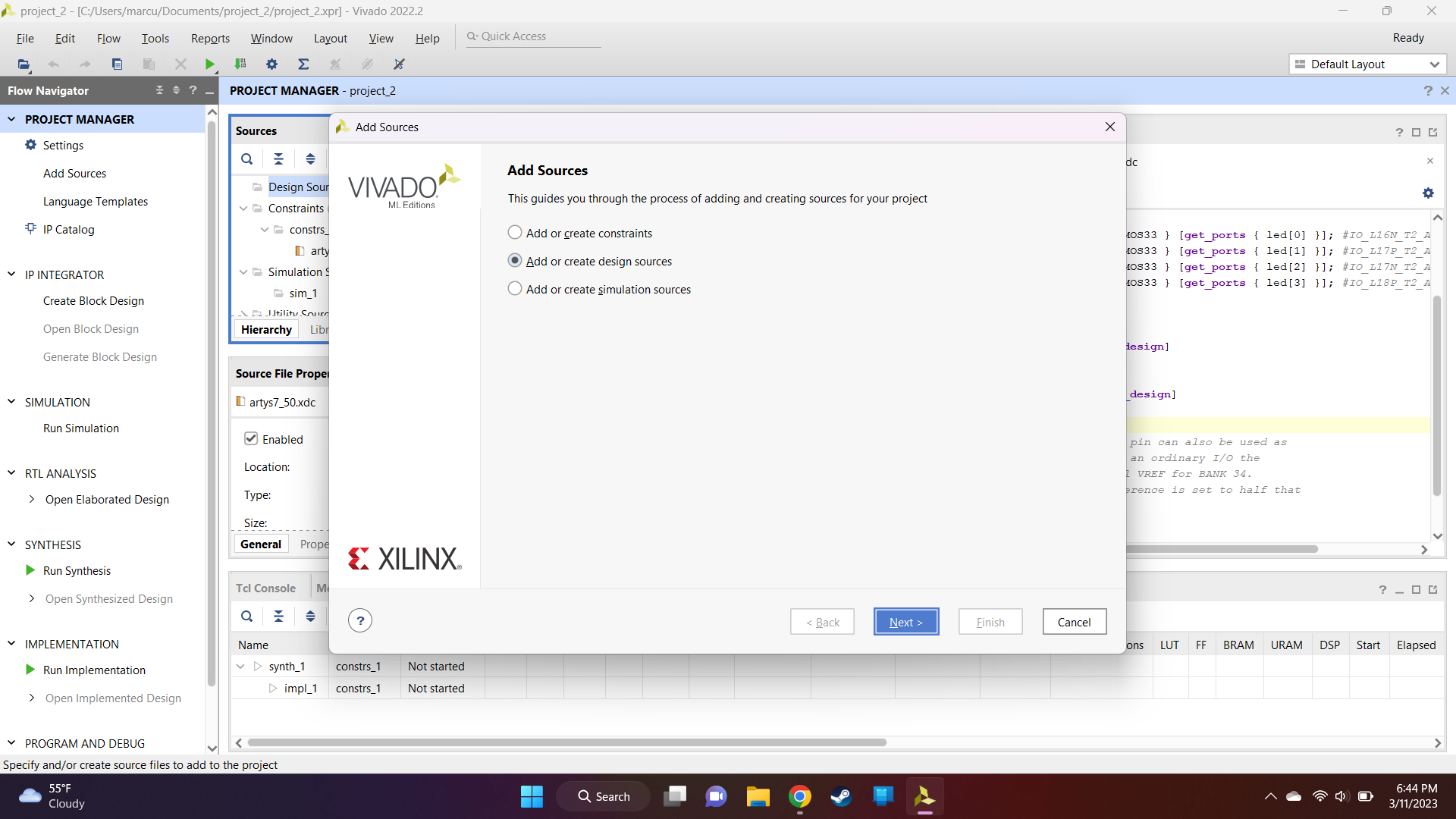

Add sources

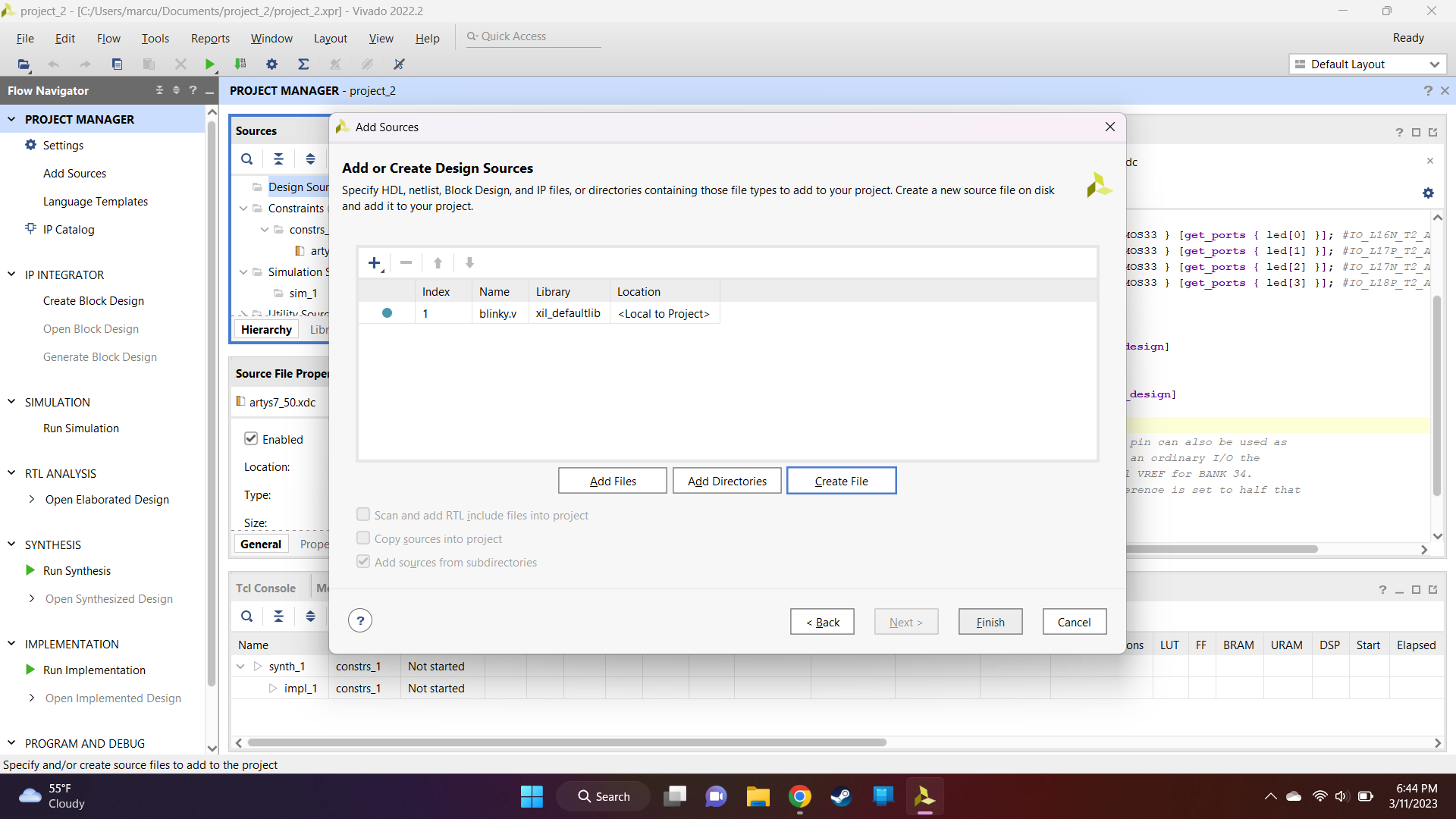

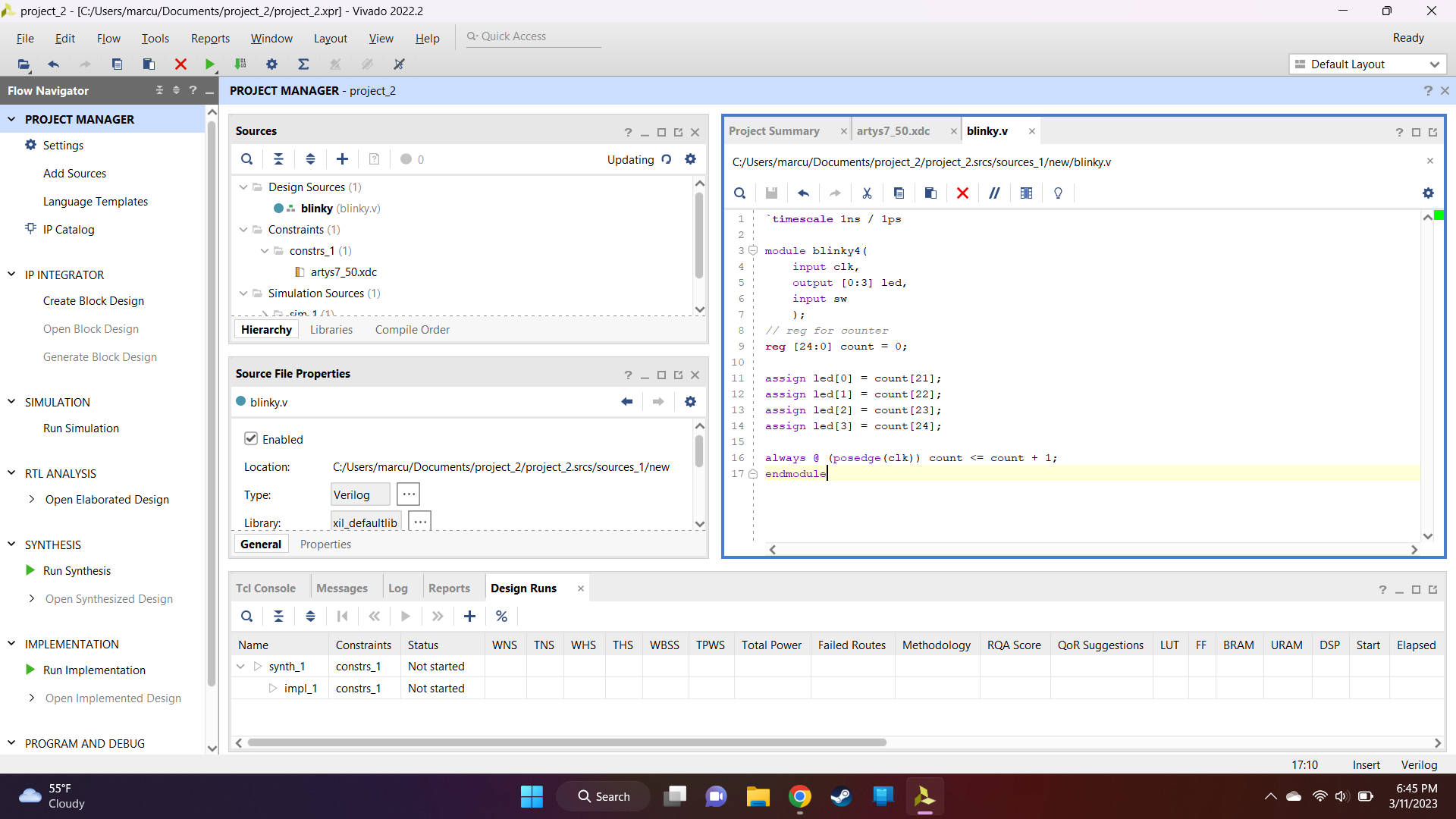

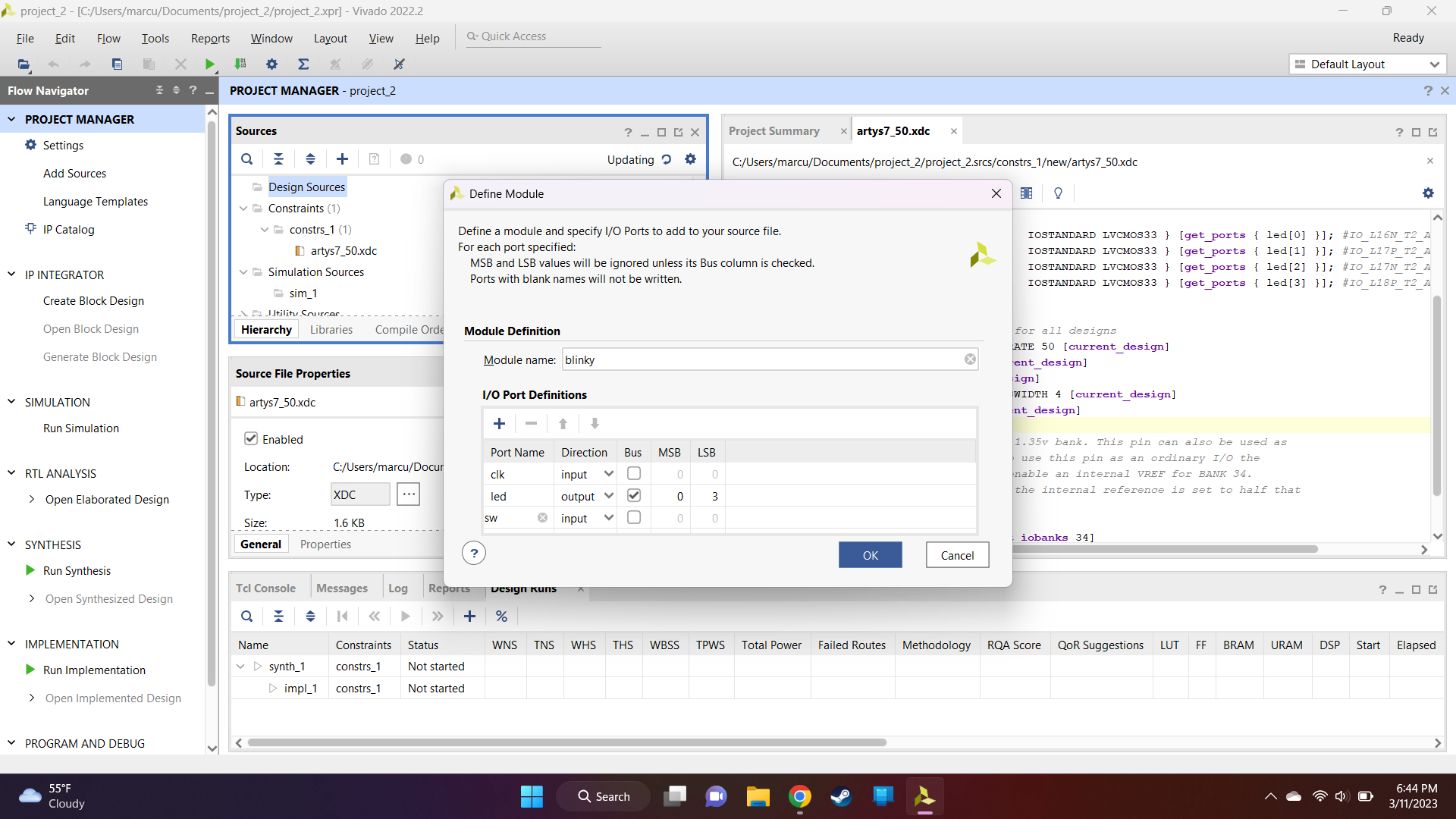

Click on created file and add the following

Click here to expand...

`timescale 1ns / 1ps

module blinky4(
    input clk,
    output [0:3] led,
    input sw
    );
// reg for counter
reg [24:0] count = 0;

assign led[0] = count[21];
assign led[1] = count[22];
assign led[2] = count[23];
assign led[3] = count[24];

always @ (posedge(clk)) count <= count + 1;
endmodule

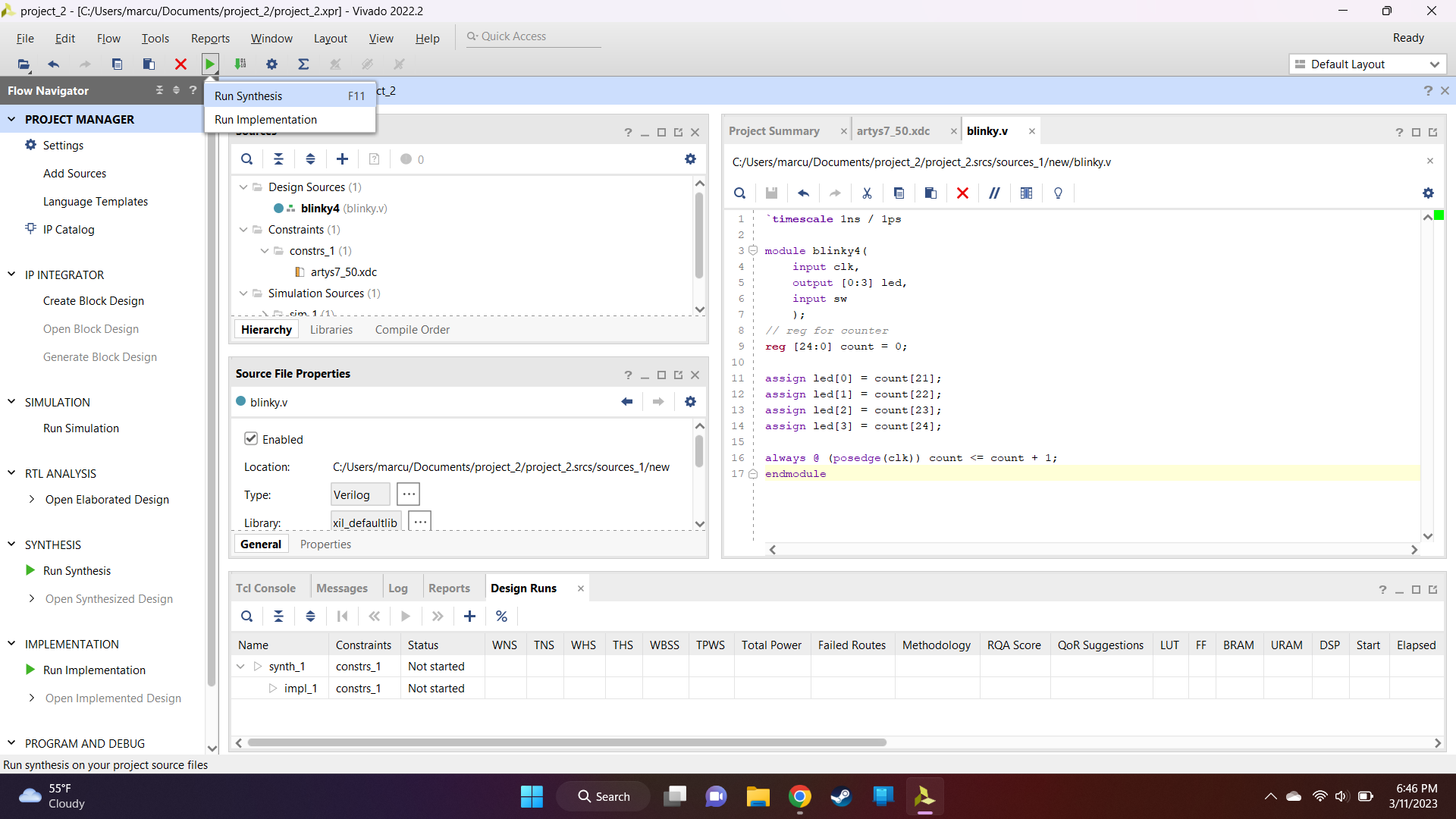

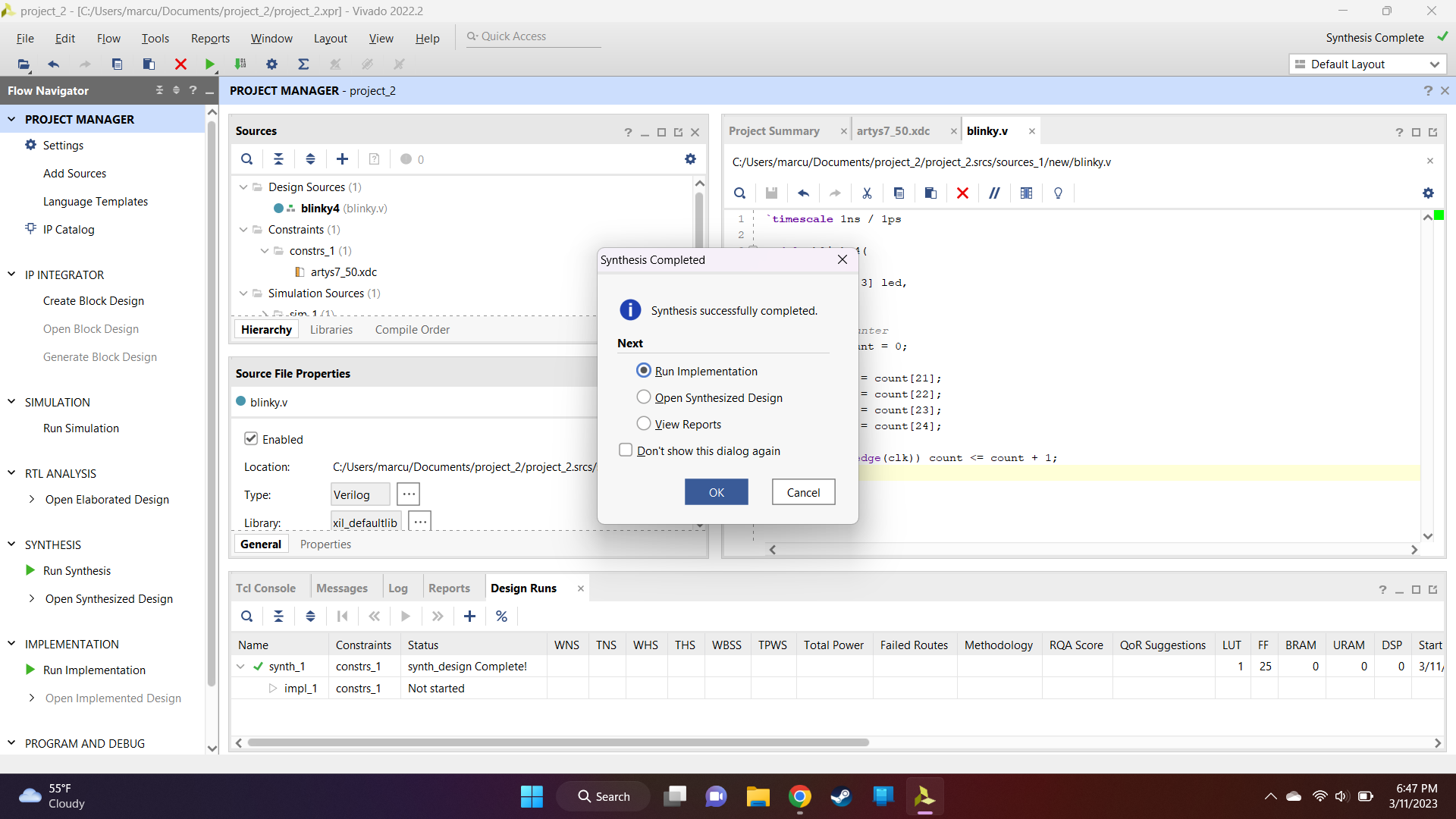

Click on “Run Synthesis”

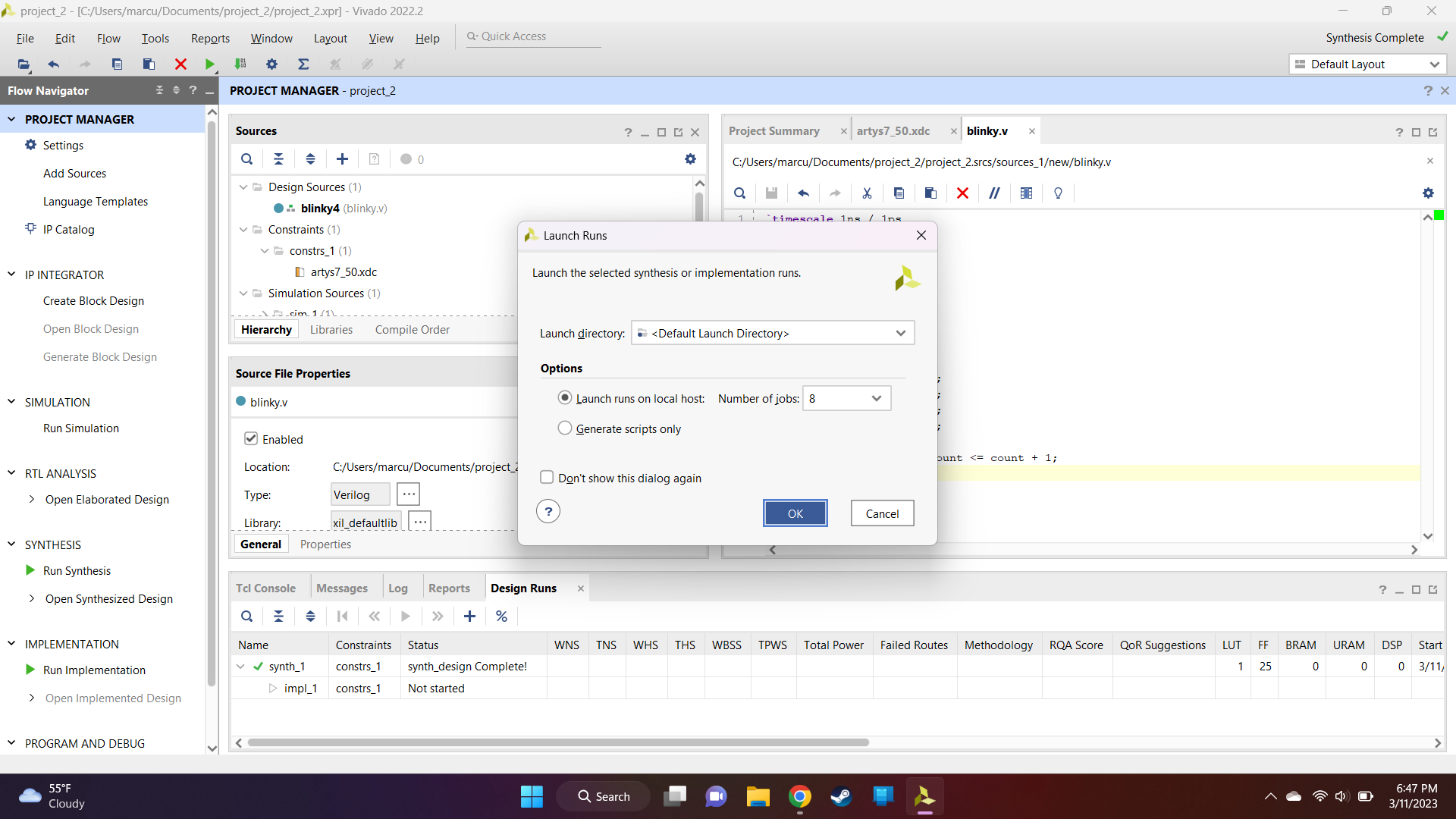

Once “Run Synthesis” is done, click on “Run Implementation”

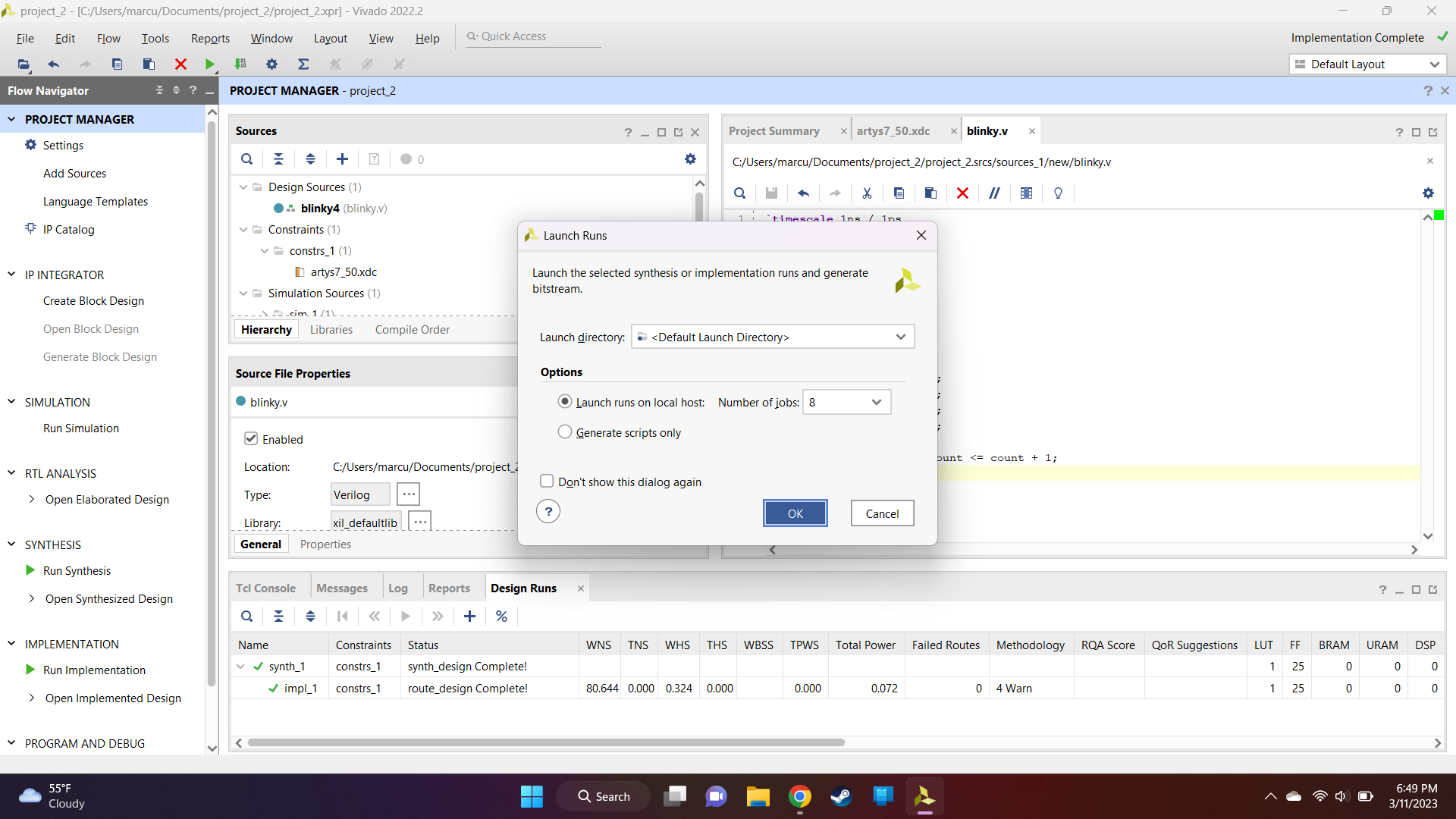

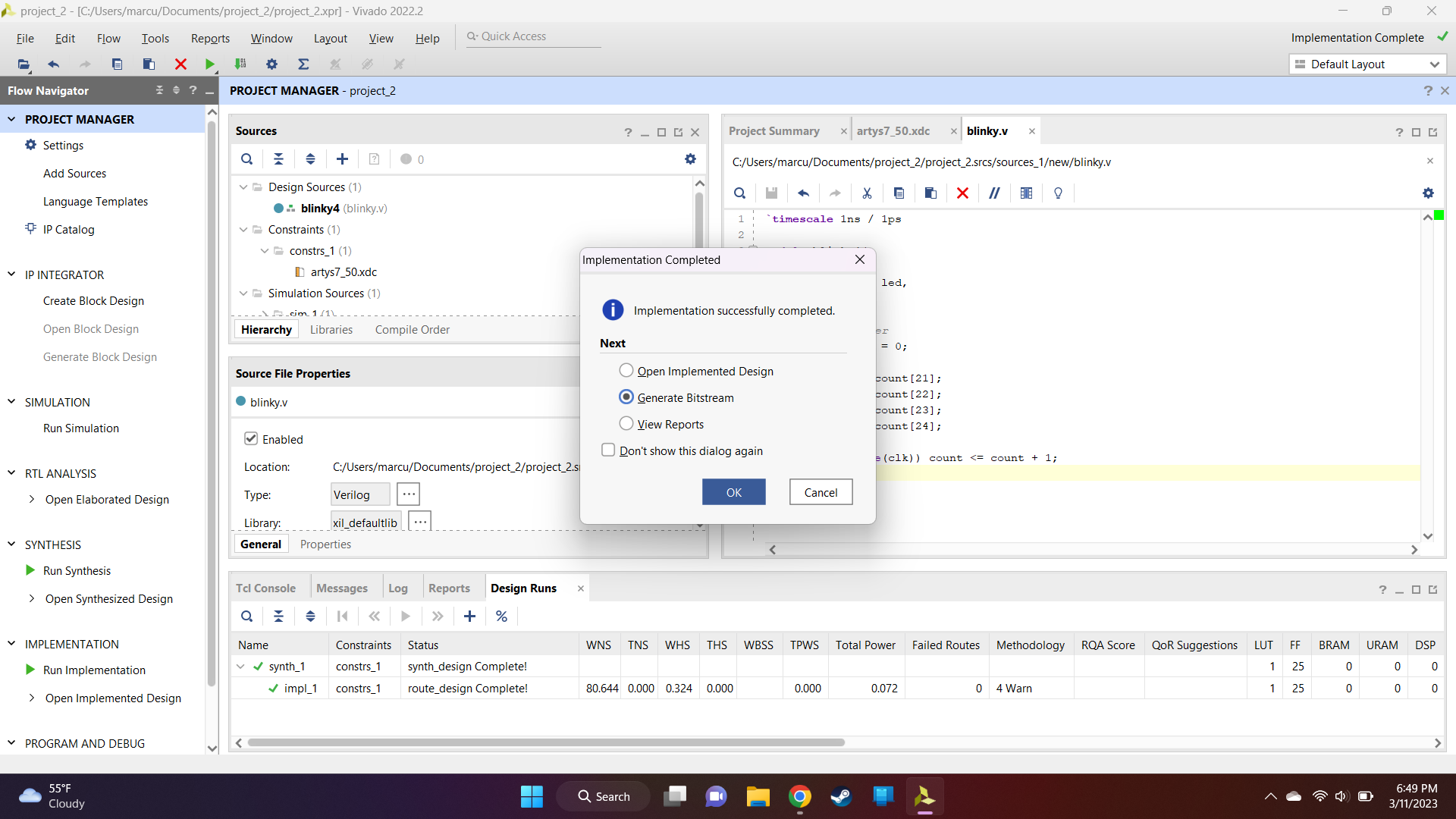

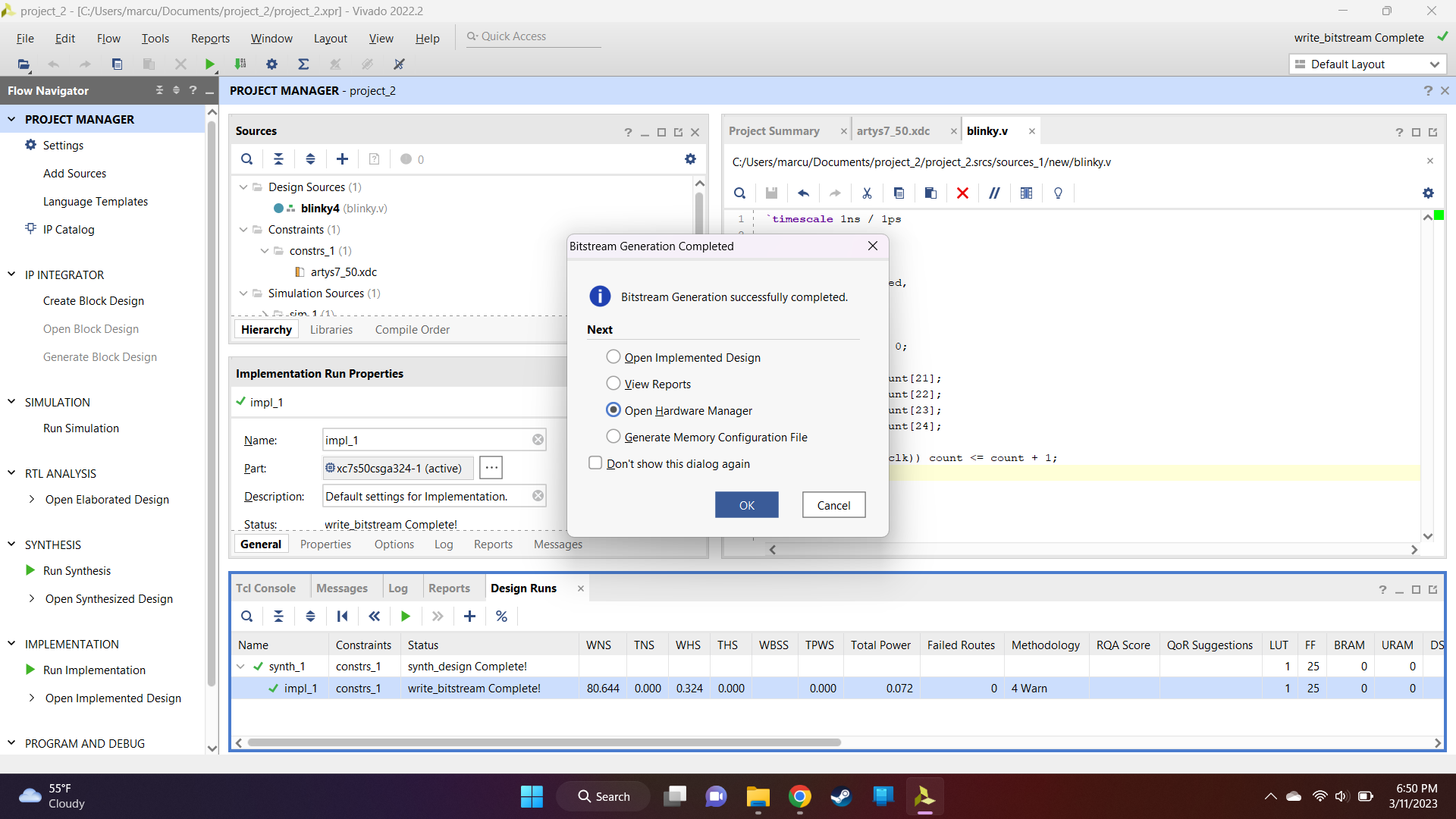

Once “Run Implementation” is done, click on “Generate Bitstream”

Once “Generate Bitstream” is complete. Click on “Open Hardware Manager”

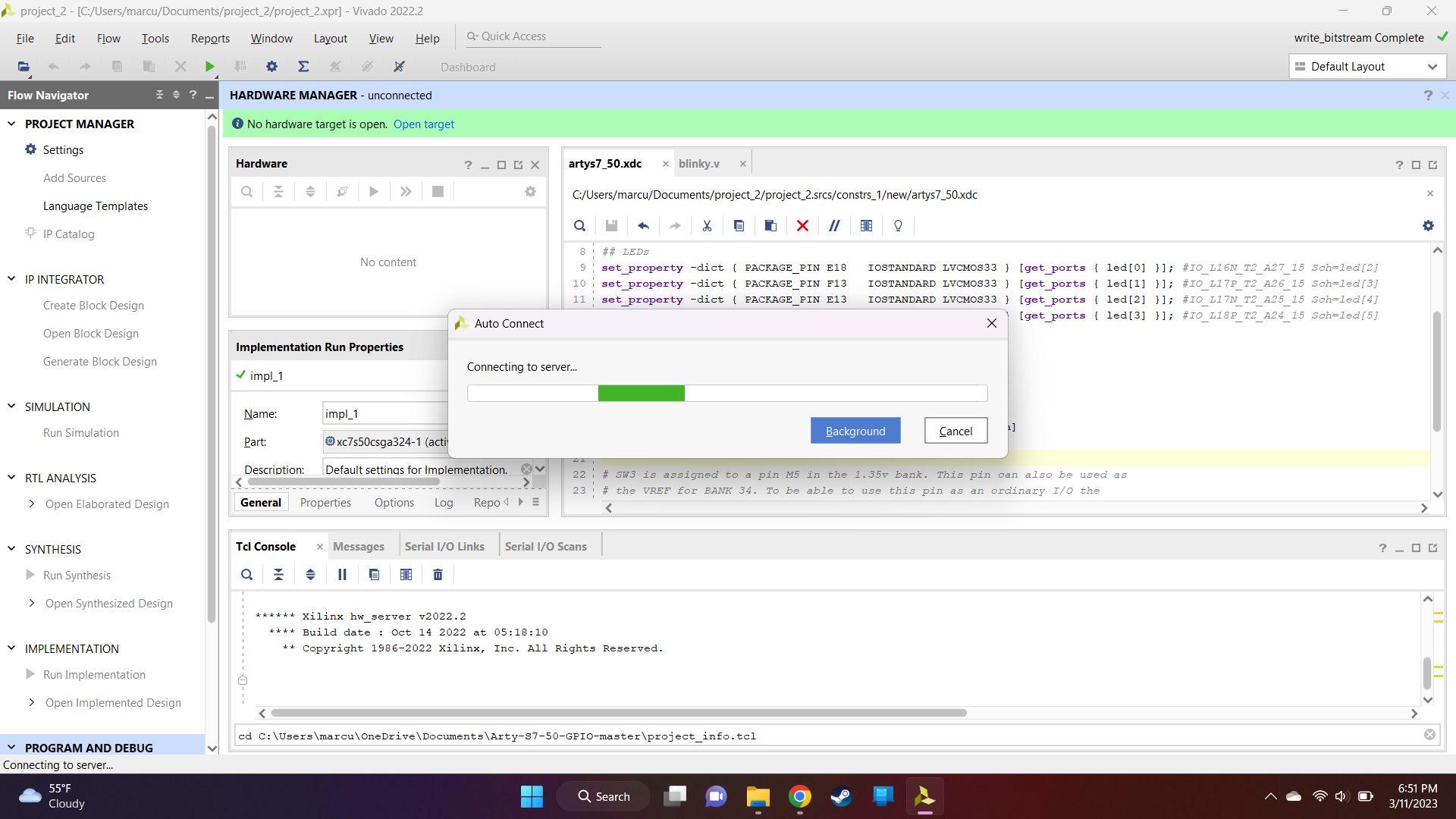

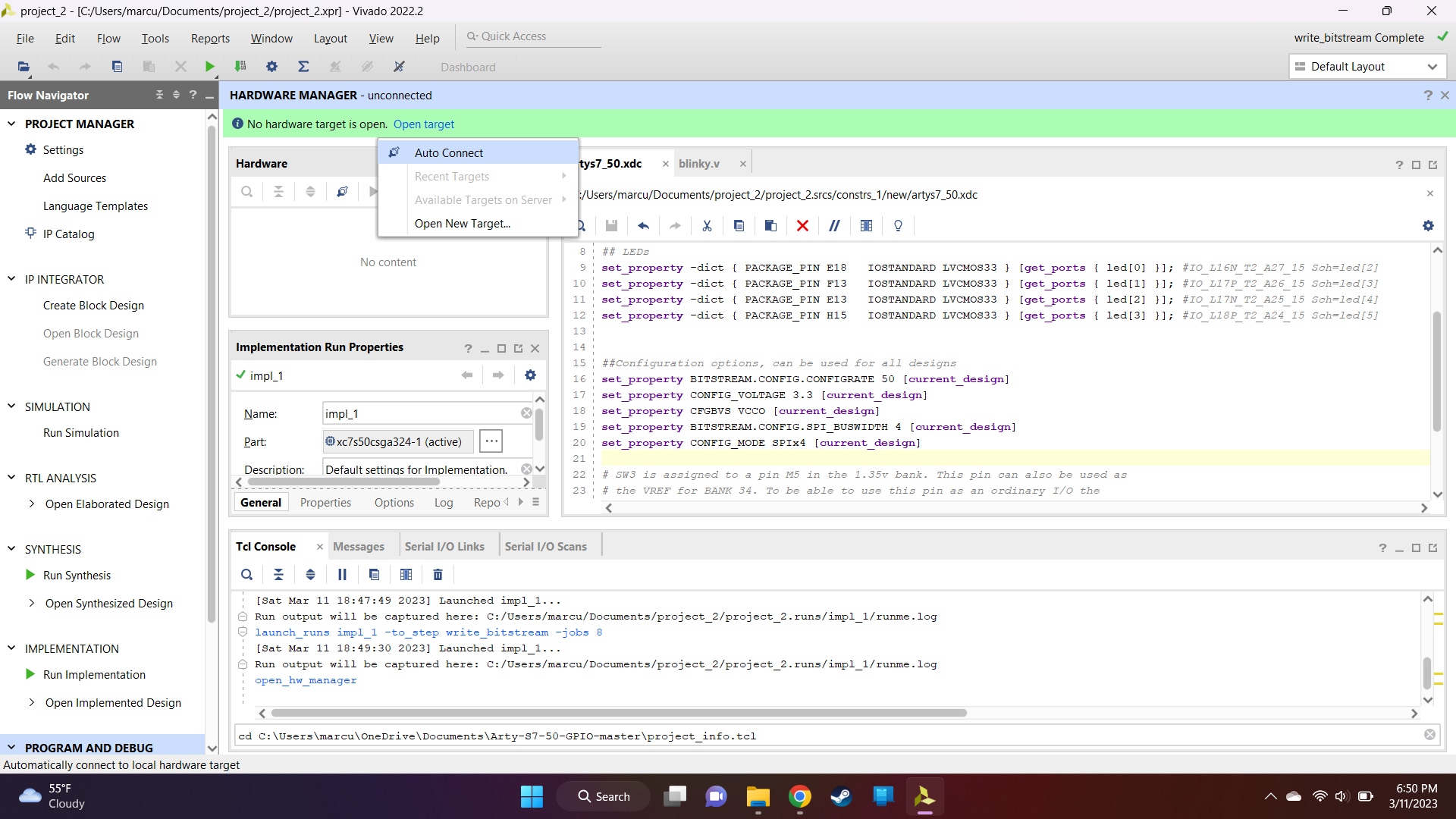

Connect your board to the computer. Click on “Auto-connect”

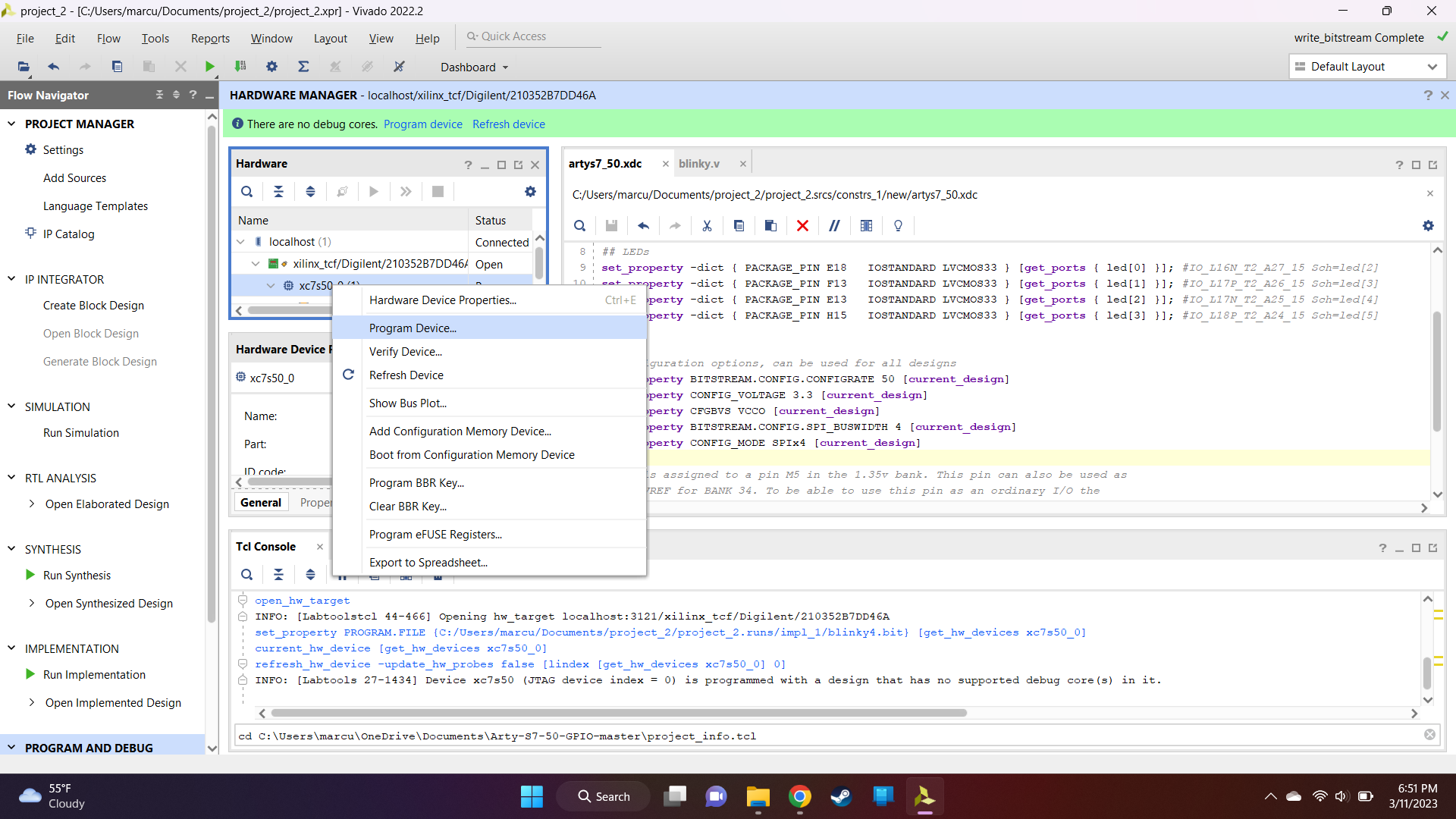

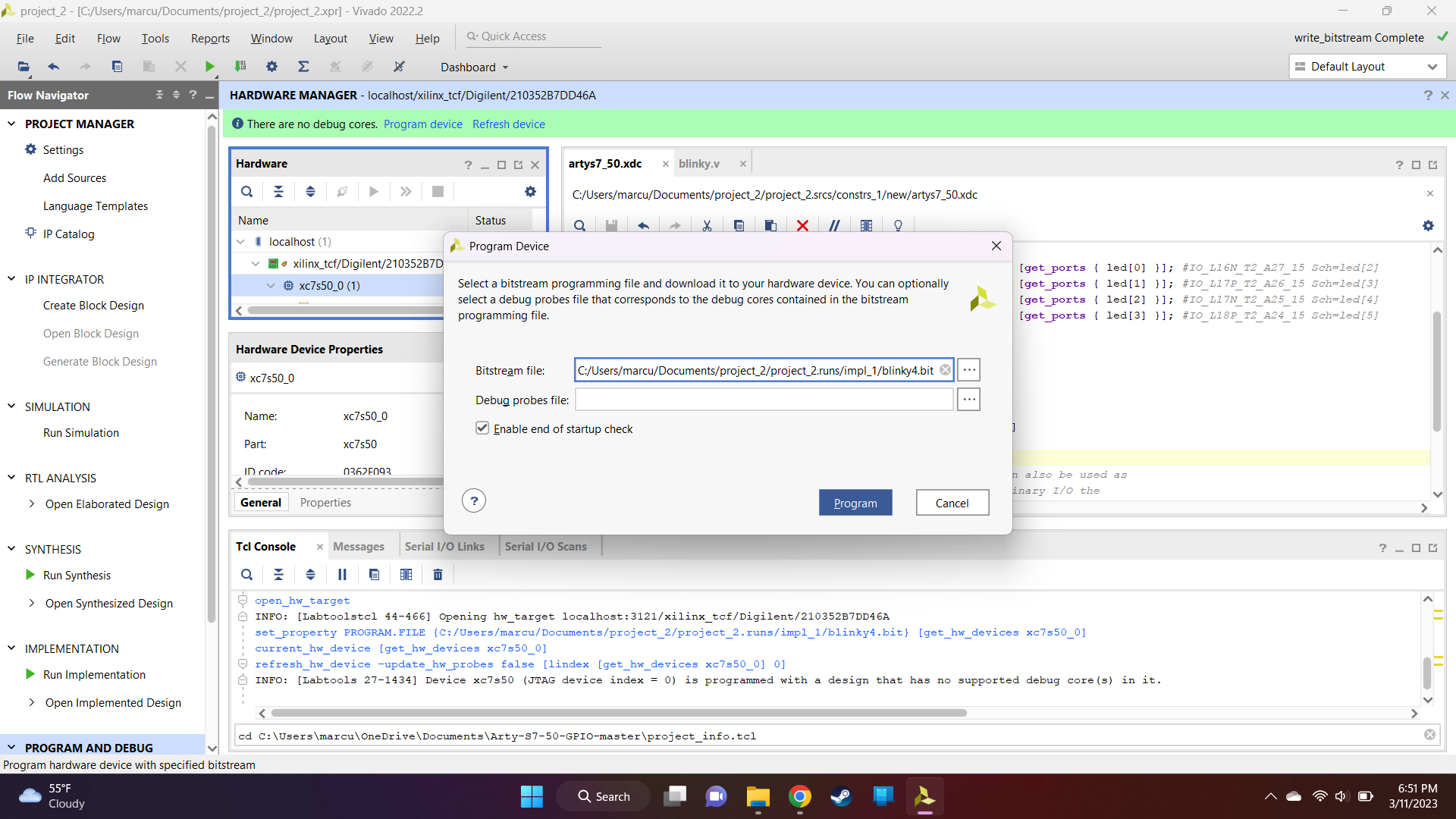

Once connected, click on “Program Device”
