Programming Array Logic (PAL) |
Programmable Logic Array (PLA) |
|---|---|
|
Both are the categories of Programmable Logic Device (PLD) | |
|
consist of the programmable array of AND but a fixed array of OR gate |
consists of the programmable array of AND and OR gates |
|
|
|

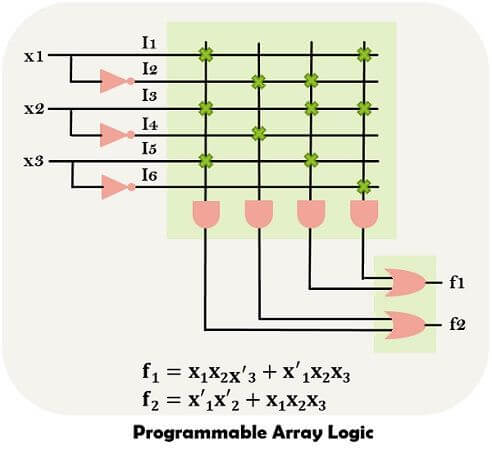

---microchip---chip/programmable-logic-device-(pld)/programming-array-logic-(pal)---programmable-logic-array-(pla)/pal-diagram.jpeg)

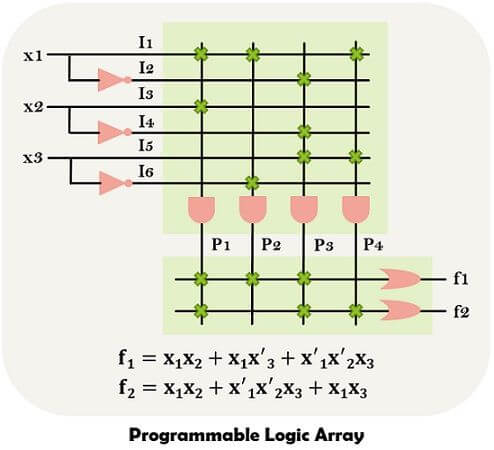

---microchip---chip/programmable-logic-device-(pld)/programming-array-logic-(pal)---programmable-logic-array-(pla)/pla-diagram.jpeg)
