Current Architecture - Basic

All code repositories are within this github organization

Current Architecture - Detailed
doc.marcuschiu.com backup

There are 2 modes in this Current Architecture:

• view mode - public for everyone
• edit mode - restricted to me only

Editing and Creating Web Pages
anyone could view the edit console, but only I can submit the changes

• edit - double press f-key
• create - double press c-key

View Mode Architecture

Browser
any computer accessing doc.marcuschiu.com

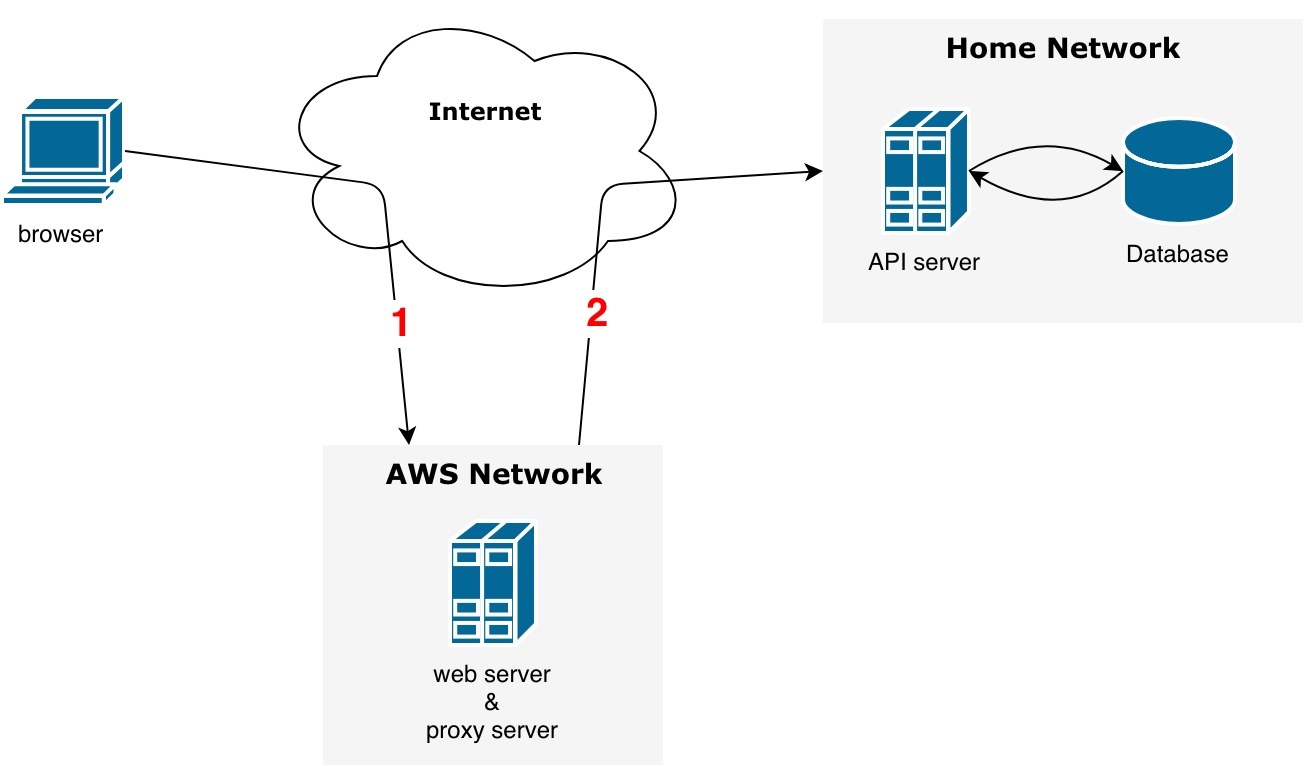

AWS Network
this network contains a single EC2 instance. This instance is a public computer running a Nginx server that handles 2 jobs: a web server and a proxy server

• web server
  • serves “blank” web pages which are to filled from data received from the API server
  • web pages are built using Angular 5
  • here’s the github repository
• proxy server
  • mediates all API requests between Browser and API server

Home Network
this network contains a API server and a Database

• API Server
  • exposed to the internet, but only responds to the proxy server
  • is a Spring Boot application
  • here’s the github repository
• Database
  • is a MongoDB database

Edit Mode Architecture

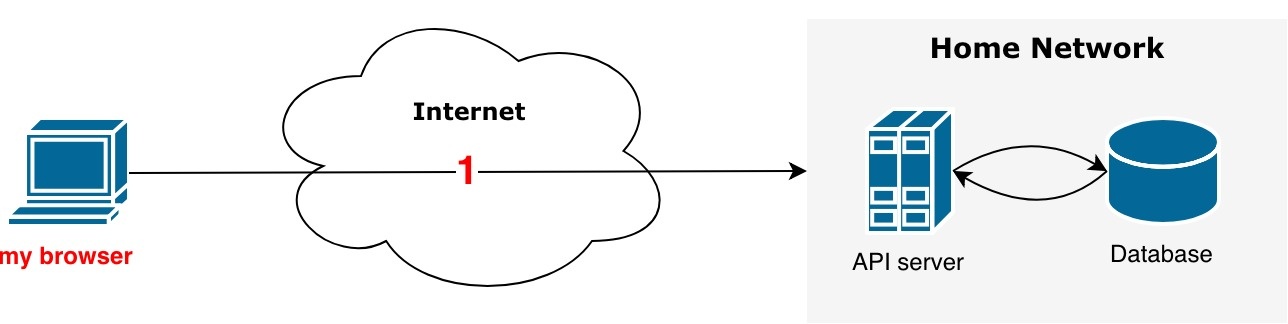

My Browser
via VPN, my browser is able to contact my Home Network directly and thus edit any webpage.
