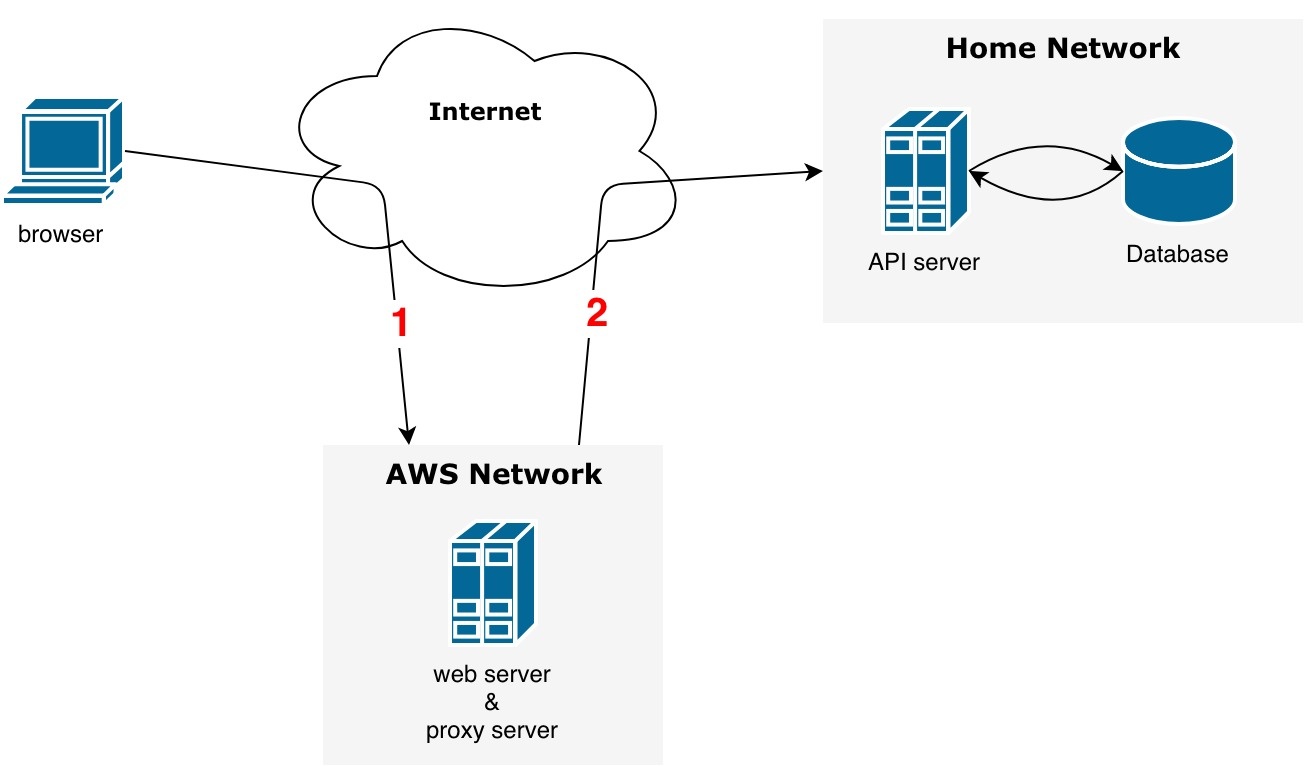

Current Architecture - Detailed

Setting up AWS Nginx Server (Web and Reverse Proxy Server)

• install nginx server
• below is the file /etc/nginx/nginx.conf

  user root;
  worker_processes auto;
  error_log /var/log/nginx/error.log;
  pid /run/nginx.pid;

  include /usr/share/nginx/modules/*.conf;

  events {
      worker_connections 1024;
  }

  http {
      log_format  main  '$remote_addr - $remote_user [$time_local] "$request" '
                        '$status $body_bytes_sent "$http_referer" '
                        '"$http_user_agent" "$http_x_forwarded_for"';

      access_log  /var/log/nginx/access.log  main;

      sendfile            on;
      tcp_nopush          on;
      tcp_nodelay         on;
      keepalive_timeout   65;
      types_hash_max_size 2048;

      include             /etc/nginx/mime.types;
      default_type        application/octet-stream;

      include /etc/nginx/conf.d/*.conf;

      # marcuschiu.com
      limit_req_zone $binary_remote_addr zone=personal:10m rate=10r/s;
      server {
          listen 80;
          server_name marcuschiu.com;
          root /usr/share/nginx/personal-website;
          index index.html;
          limit_req zone=personal burst=20 nodelay;
          location / {
          }
      }

      # inspector.marcuschiu.com
      server {
          listen 80;
          server_name inspector.marcuschiu.com;
          root /home/ec2-user/fake-personal-website;
          index index.html;
          limit_req zone=personal burst=20 nodelay;
          location / {
          }
      }

      # doc.marcuschiu.com
      limit_req_zone $binary_remote_addr zone=mylimit:10m rate=2r/s;
      server {
          listen 80;
          server_name doc.marcuschiu.com;
          root /usr/share/nginx/ui-store-front-build;
          index index.html index.htm;
          limit_req zone=mylimit burst=20 nodelay;
          location / {
              # This will allow you to refresh the page in your angular app
              # Which will not give you an error 404
              try_files $uri $uri/ /index.html;
          }
      }

      # core.marcuschiu.com
      limit_req_zone $binary_remote_addr zone=corelimit:10m rate=2r/s;
      server {
          listen 80;
          server_name core.marcuschiu.com;
          limit_req zone=corelimit burst=10 nodelay;
          location / {
              proxy_pass http://72.180.103.50:8080;
              # pass HTTP Host Header so home proxy can distinguish it from wiki.marcuschiu.com
              proxy_set_header Host core.marcuschiu.com;
              proxy_set_header X-Forwarded-For $remote_addr;
          }
      }

      # wiki.marcuschiu.com
      limit_req_zone $binary_remote_addr zone=wikilimit:10m rate=10r/s;
      server {
          listen 80;
          server_name wiki.marcuschiu.com;
          limit_req zone=wikilimit burst=10 nodelay;
          location / {
              proxy_pass http://72.180.103.50:8080;
              # pass HTTP Host Header so home proxy can distinguish it from core.marcuschiu.com
              proxy_set_header Host wiki.marcuschiu.com;
              proxy_set_header X-Forwarded-For $remote_addr;
          }
      }
  }

• check status of nginx configuration files
  nginx -t
• build the angular project
  ng build —env=prod
• clone angular project into nginx server directory /usr/share/nginx/ui-store-front-build
  git clone https://github.com/d-log/ui-store-front-build.git
• run nginx server and check status
  systemctl stop nginx.service
  systemctl start nginx.service
  systemctl status nginx.service

Setting up Home Nginx Server

• install nginx server
• below are /etc/nginx/sites-available/core-service and /etc/nginx/sites-available/ui-store-front

  server {
      listen 8080;
      server_name core.marcuschiu.com;

      allow 54.161.89.224;
      deny all;

      access_log logs/core.marcuschiu.com/access.log;
      error_log  logs/core.marcuschiu.com/error.log;

      location / {
          proxy_set_header Upgrade $http_upgrade;
          proxy_set_header Connection "upgrade";
          proxy_set_header Host $host;

          proxy_pass http://192.168.86.218:8888;

          limit_except GET {
              deny all;
          }
      }
  }

  server {
      listen 80;
      server_name 192.168.86.217;

      root /var/www/ui-store-front-build;
      index index.html index.htm;

      location / {
           # This will allow you to refresh the page in your angular app
           # Which will not give you an error 404
           try_files $uri $uri/ /index.html;
      }
  }


• build the angular project
  ng build —env=self
• clone angular project into nginx server directory /var/www
  git clone https://github.com/d-log/ui-store-front-build.git
• enable sites
  cd /etc/nginx/sites-enabled
  sudo rm default
  sudo ln -s ../sites-available/ui-store-front ui-store-front
  sudo ln -s ../sites-available/core-service core-service
• create log directory
  sudo mkdir -p /usr/share/nginx/logs/core.marcuschiu.com
• start nginx server
  sudo nginx -t
  sudo /etc/init.d/nginx start
  sudo /etc/init.d/nginx status

S3 Bucket Policy

{
    "Version": "2012-10-17",
    "Id": "http referer policy example",
    "Statement": [
        {
            "Sid": "Allow get requests referred by http://doc.marcuschiu.com",
            "Effect": "Allow",
            "Principal": "*",
            "Action": "s3:GetObject",
            "Resource": "arn:aws:s3:::repo.marcuschiu.com/*",
            "Condition": {
                "StringLike": {
                    "aws:Referer": [
                        "http://doc.marcuschiu.com/*",
                        "https://doc.marcuschiu.com/*",
                        "http://192.168.86.217/*",
                        "https://192.168.86.217/*"
                    ]
                }
            }
        },
        {
            "Sid": "Explicit deny to ensure requests are allowed only from specific referer.",
            "Effect": "Deny",
            "NotPrincipal": {
                "AWS": "arn:aws:iam::769510571738:user/marcus"
            },
            "Action": "s3:*",
            "Resource": "arn:aws:s3:::repo.marcuschiu.com/*",
            "Condition": {
                "StringNotLike": {
                    "aws:Referer": [
                        "http://doc.marcuschiu.com/*",
                        "https://doc.marcuschiu.com/*",
                        "http://192.168.86.217/*",
                        "https://192.168.86.217/*"
                    ]
                }
            }
        },
        {
            "Sid": "allow marcus to upload",
            "Effect": "Allow",
            "Principal": {
                "AWS": "arn:aws:iam::769510571738:user/marcus"
            },
            "Action": "s3:*",
            "Resource": "arn:aws:s3:::repo.marcuschiu.com/*"
        }
    ]
}

API Server Spring Boot

• /home/pi/Documents/tmp/image-upload
• /home/pi/Documents/core-service
• below is the modified application.properties file

  server.port=8888

  spring.data.mongodb.database=logger-project
  spring.data.mongodb.host=192.168.86.219
  spring.data.mongodb.port=27017

  aws.s3.bucket.name=repo.marcuschiu.com

  spring.http.multipart.max-file-size=25MB
  spring.http.multipart.max-request-size=25MB
  image.upload.tmpdir=/home/pi/Documents/tmp

  spring.data.rest.defaultPageSize=10
  spring.data.rest.maxPageSize=20


• install aws cli
• configure aws credentials ~/.aws/credentials
  aws configure
• run spring boot application in background
  nohup mvn spring-boot:run &
