Fourier-Transform) Algorithms

Signal-to-frequency algorithms convert a time-domain signal into its frequency-domain components. They are used to create power spectrums

Fourier Series	is a way of representing a periodic function as a (possibly infinite) sum of sine and cosine functions for functions that are not periodic, the Fourier transform is used in place of the Fourier series for functions of two variables that are periodic in both variables, the trigonometric basis in the Fourier series is replaced by the spherical harmonics is a continuous transformation of a continuous periodic signal is analogous to a Taylor series, which represents functions as possibly infinite sums of monomial terms cases: periodic function → converts into a discrete exponential function or sine and cosine function non-periodic function → not applicable Link to original
Discrete Fourier Transform (DFT) - Discrete Fourier Series	takes a DISCRETE signal as input and outputs a DISCRETE frequency spectrum transforms data in the time or spatial domain into the frequency domain should technically be called a Discrete Fourier Series is like a Fourier Series on data instead of analytic functions converts a finite sequence of equally-spaced samples of a function 𝑓(𝑥) into a same-length sequence of equally-spaced samples of the discrete-time Fourier transform (DTFT), which is a complex-valued function of frequency is a unitary, invertible, linear transformation $\mathcal{F}:C^N\to C^N$ most often uses the FFT algorithm to compute the DFT is the inverse of the Inverse Discrete Fourier Transform (IDFT) Link to original
Discrete-Time Fourier Transform (DTFT)	takes DISCRETE signal as input and outputs a CONTINUOUS frequency spectrum it’s defined by an infinite summation over the discrete-time signal while mathematically powerful, the DTFT is not directly computable on a computer because of its continuous nature and infinite summation thus Discrete Fourier Transform (DFT) - Discrete Fourier Series is a computationally efficient way to approximate the DTFT Link to original
Fourier Transform (FT)	takes CONTINUOUS time signal as input and outputs a CONTINUOUS frequency spectrum is a continuous transformation of a continuous function into its constituent frequencies cases: periodic function → converts its Fourier series in the frequency domain non-periodic function → converts it into a continuous frequency domain can ONLY transform nice well-behaved functions that go to 0 at ±∞; otherwise use Laplace Transform Link to original
Laplace Transform (LT)	is a mathematical method that converts a function of a real variable to a function of a complex variable a function 𝑓(𝑡) that can’t be Fourier Transformed can be Laplace Transformed by multiplying the function by a decaying exponential 𝑒-𝜁𝑡 and a heavyside function 𝐻(𝑡) where 𝜁 is a constant: 𝐹(𝑡) = 𝑓(𝑡)𝑒-𝜁𝑡𝐻(𝑡) thus: the Laplace transform of 𝑓(𝑡) is the Fourier transform of 𝐹(𝑡) the Laplace transform is a one-sided weight Fourier transform a discrete version is Z-Transform Link to original
Z-Transform	converts a discrete-time signal, which is a sequence of real or complex numbers, into a complex valued frequency-domain representation it can be considered a discrete-time equivalent of the Laplace transform Link to original

Link to original

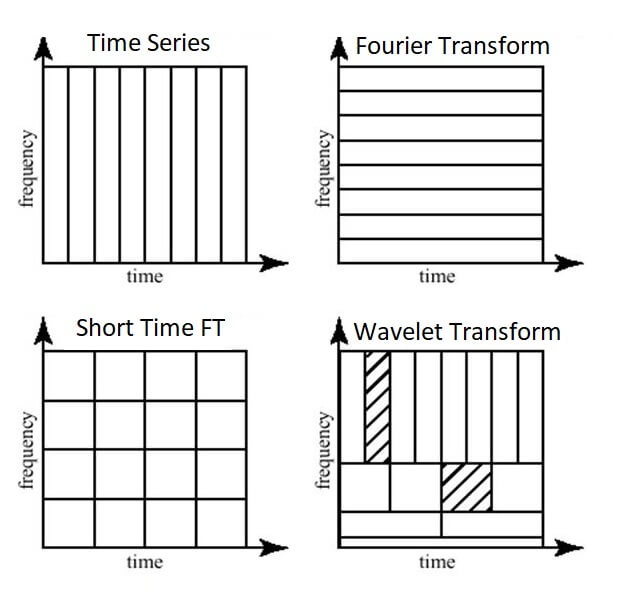

Spectrogram Producing Algorithms

Creates a spectrogram by utilizing signal-to-frequency algorithms

Short-Time Fourier Transform (STFT)	represents a signal in the time-frequency domain by computing discrete Fourier transforms (DFT) over short overlapping windows it is used to compute a spectrogram Link to original
Gabor Transforms (GT)	is a special case of the short-time Fourier transform where the window function is a Gaussian function the problem Gabor transforms tries to solve is that the Fourier transform takes pure time/spatial data and transforms it into pure frequency data. There’s nowhere in between to look at data in both the time and frequency domain, which is what Gabor Transforms is used for. it is used to compute the spectrogram it is used to determine the sinusoidal frequency and phase content of local sections of a signal as it changes over time Link to original
Wavelet Transform (WT)	generalizes the Fourier transform and is better suited to multi-scale data it is like the Gabor Transform but takes advantage of the idea that lower frequencies tend to last for a long time, and higher frequencies tend to change faster in time Link to original
